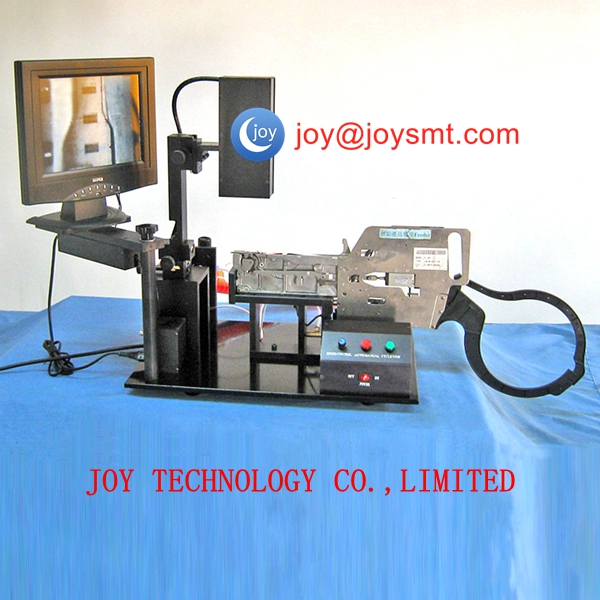

I-Pulse F1 feeder calibration jig for MI M3 M6 M10 Machine

I-Pulse F1 feeder calibration jig Specifications and Features
1) For I-pulse F1 Feeder.
2) Monitor 12" LED display
3) Type Pneumatic/Manual
4) Camera CCD safe arrival part, the precise micro controller of X, Y, Z axis,Precise XY axis adjustment
6)The acquisition for the rectangular coordinate of X-Y direction.
7)Check for the existence, transformation, user in the feeder,precise control fixtures feeders
8)The installation is to euip it with actual device and consolidation in feeder base
9)The automatic (or semi-automatic), IC transfer device can move IC to the specific area(point)
10)The simple calibration for removing or taking feeder easily,Automatically step function.
11)It is correction as measurement with CCD Camera.axis camera can be directly adjusted,bright LED display.
12)Timer control make it pssible to change the IC pick-u time.
13)The use pressure is able to control in the regulator and air cylinder.
14)Verification and correction available worker`s convenience and well carriage by the work desk.
15). 220V/24V DC power supply,black and white cross reference cursor,
16) precise 8mm,12mm,16mm and 24 mm feeders control band.
17) One year quarantee



The details of  I-pulse F1 Feeder calibration jig
1) Simple structure, easy operation, function optimization. And the use of high-precision 0 gap guide,
 to ensure positional stability, greatly improve work efficiency

2) Accurate detection. Reclaimer position, height, strut height can be done accurately measured.
   To better grasp the quality status;

3) The use of 10 'color LED display, LED lighting ring, 50 times magnification CCD camera,
making more compact structure, beautiful. Effectively reducing eye fatigue, improve the quality of work;

4) Easy to operate, and can simulate the placement machine, automatic continuous observation reclaimer position,
 a clearer grasp FEEDER continuous operation quality, and thus more effective control of polishing material ratio;

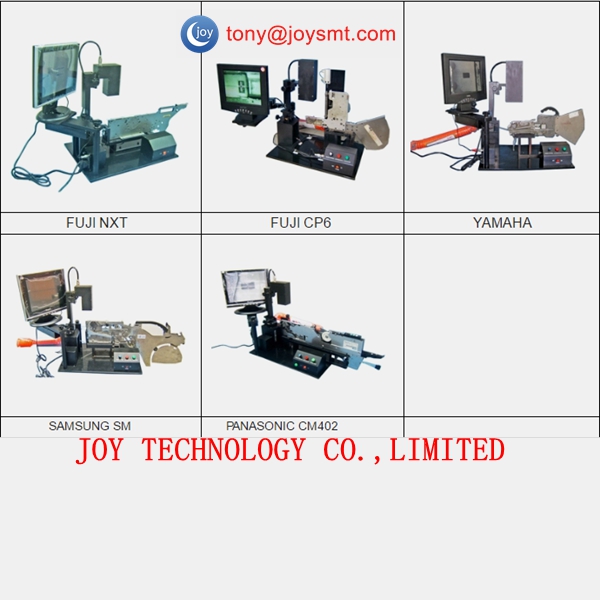

5) You can choose a variety of models such asI-Pulse F1,
 FUJI CP6, YAMAHA, SANYO; PANASONIC, UNIVERSAL, SONY; JUKI; SAMSUNG;


Use for : FEEDER calibration jig for calibration of various models
Power supply: 220V/24V
Compressed air requirements: 5kg/cm²
Dimensions: L500mm * W 350mm * H550mm
Weight: about 35kg
