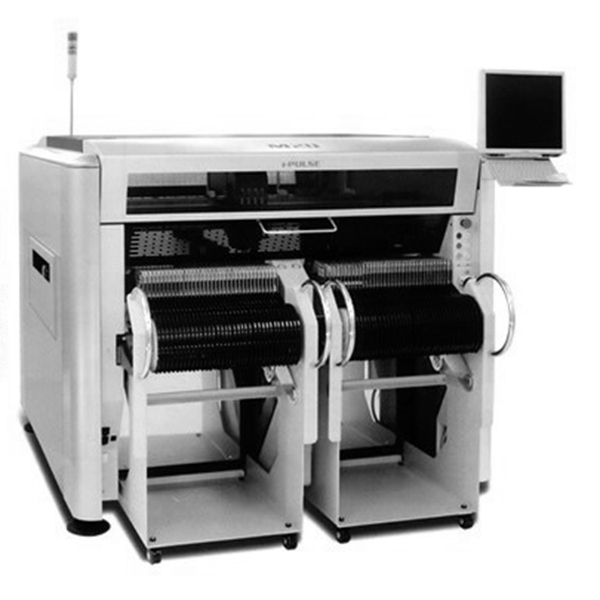

SMT Machine I-Pulse M20
If you're looking for the next generation in SMT Automation then look no further than the iPulse M20.
This feature packed machine comprises of many exciting features including its extra-large PCB handling
that has never before seen in a standard footprint mounter. Extended component height along with
overall dimension and capability expands the range of placeable components, making the M20 the
most flexible and capable machines ever offered from iPulse.
The M20 comes available in 4 and 6 head configurations to suit capacity and technology
demands. The range of feeder bank and optional tray handling configurations allows very
fast product change-over where a maximum of 144 feeders can be set on feeder banks or
changeable banks of 36 feeders. The 36 feeder can also be swapped with a 40 tray changer
if required.
Other features include Force Control Function, allows adjustment and measurement of the
downward force applied to components being placed from 5n to 60N. Placement verification
uses a downward looking camera where the need for a separate after placement is
eliminated for a separate after placement inspection machine.
