Product Description

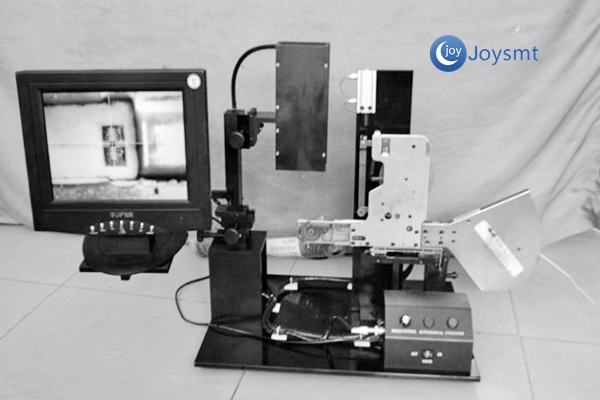

product name: SMT FEEDER calibration jigs
Dimensions:L500*W350*H550(MM)
Correction Model:Automatic
Product Information
Product parameters:12-inch LCD monitor with a cross-scale 50 times color CCD camera
The lens part: using professional high-definition magnified 50 times CCD
Front of the lens: equipped with infrared LED light, can be more clearly detected suction position
Slider: X, Y, Z axes are used imported sliders, hardness, easy to wear, adjustable stroke 15MM
Display: 7 inch special LCD display, or black and white display, large and small customers optional
Part of the circuit: solenoid valve used Japan SMC components, buttons used Fuji brand
Base: used 45 # steel imported carved from, and other heat-treated to enhance its hardness, ensure its
accuracy
Calibrator base: using imported 16MM thick aluminum processing
Choose a variety of models such as FUJI,YAMAHA,SAMSUNG,SANYO,SONY,
PANASERT,Universal,FUTURITY,PHILIPS,KME,SIEMENS,JUKI,I-PULSE ,Hitachi ,CASIO etc.
