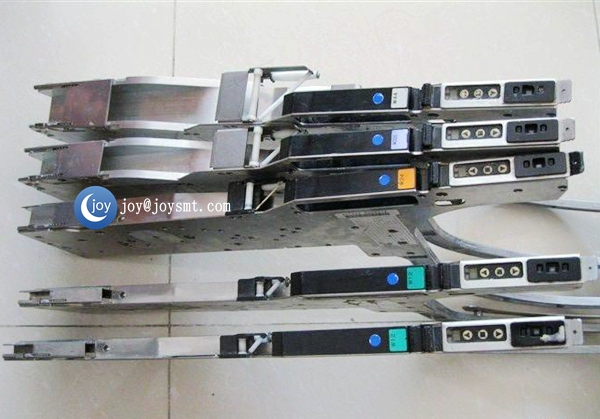

FUJI NXT 56mm feeder W56C
FUJI NXT Feeder models:
Part number Description
KT08C 325898 FUJI NXT feeder 8MM generation I
KT8BE 041970 FUJI NXT feeder 8MM generation II
KT12A 002843 FUJI NXT feeder 12mm Ⅰ generation
KT12C 032742 FUJI NXT feeder 12mm Ⅱ generation
KT16A 043065 FUJI NXT feeder 16mm Ⅰgeneration
KT16A 016483 FUJI NXT feeder 16mm Ⅰ generation
KT16C 026893 FUJI NXT feeder 16mm Ⅱ generation
KT24A 017067 FUJI NXT feeder 24mm
KT32A 006371 FUJI NXT feeder 32mm
KT44L 002519 FUJI NXT feeder 44mm
FUJI NXT/NXT II/NXT III/XPF/AIMEX SMT Feeder:
Model Description
4MM W04b / W04f
8MM W08 / W08b / W08c / W08f / W08n
12MM W12 / W12c
16MM W16 / W16c
24MM W24 / W24c
32MM W32 / W32c
44MM W44 / W44c
56MM W56 / W56c
72MM W72
88MM W88
Feeder performance will degrade without proper maintenance. Regular cleaning, lubrication,and calibration are essential.
Feeder neglect will lead to:
1. Mispicking of parts
2. Misplacement of parts
3. Tombstoning of parts
4. Flipped parts
Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste. When the part is not
placed into the paste correctly there is not enough surface tension to hold the part while the PCB is moving. Parts will shift.
