Product description

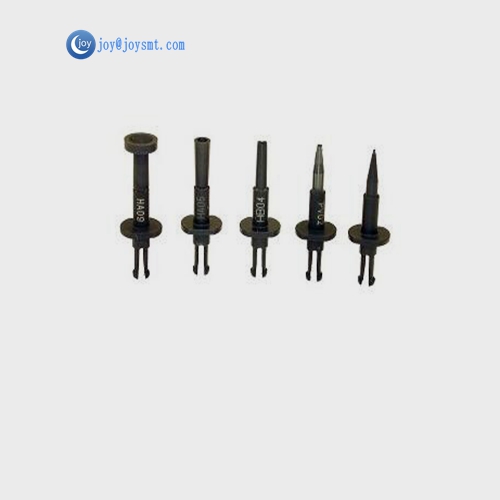

Hitachi nozzles GXH-1 GXH-3 HA09 HB04 nozzles
Hitachi GXH-1, GXH-3 Nozzles
Part Number Description
630 128 4842 (#101) HA01 0.7x0.4/ø0.25 (for 0603)
630 132 2322 (#111) PV01 1.1x0.6/ø0.38 (for 1005)
630 132 9857 (#112) PV02 1.7x0.9/ø0.65 (for 1608)
630 129 2892 (#104) HV03 ø1.3/ø0.9 (for 2012)
630 129 2922 HA04 ø1.8/ø1.2 (for 3216)
630 129 2939 (#108) HA05 ø3.0/ø2.0
630 129 2946 HA09 ø6.0/ø4.5
630 152 8267 HV31 ø0.7x0.4/ø0.2
630 152 8472 HV51 ø0.6/ø0.4
630 158 9084 HV81 ø1.7x0.9/ø0.7
630 158 6571 HG31 ø0.7x0.4/ø0.2
630 159 9632 HG51 ø0.6/ø0.4
630 161 3501 HG81 ø1.7x0.9/ø0.7
630 128 4842 HA10 ø0.7x0.4/ø0.2
630 129 2878 HV01 ø0.6/ø0.4
630 129 2885 HV02 ø0.9/ø0.7
630 133 5407 PA05 ø2.6/ø2.0
630 129 2908 HB03 Melf ø1.3/ø0.9
630 129 2915 HB04 Melf ø1.8/ø1.1
630 129 8214 VF01 ø8.0/ø3.0
630 129 8252 VF02 ø12.0/ø8.0
630 130 0283 VG35 8.0x2.2
630 130 0238 VG51
630 130 7831 VG52 7.0x1.4
630 130 0245 VT32 ø12.0x1.9
630 130 8692 VT69 ø8.6
Hitachi Sigma-G4, Sigma-G5 Nozzles
Part Number Description
HV32C HV32C
HV52C HV52C
HV82C HV82C
HV21C HV21C
HG32C HG32C
HG52C HG52C
HG82C HG82C
HV13C HV13C
HV14C HV14C
HV15C HV15C
HB03C HB03C
HB04C HB04C
