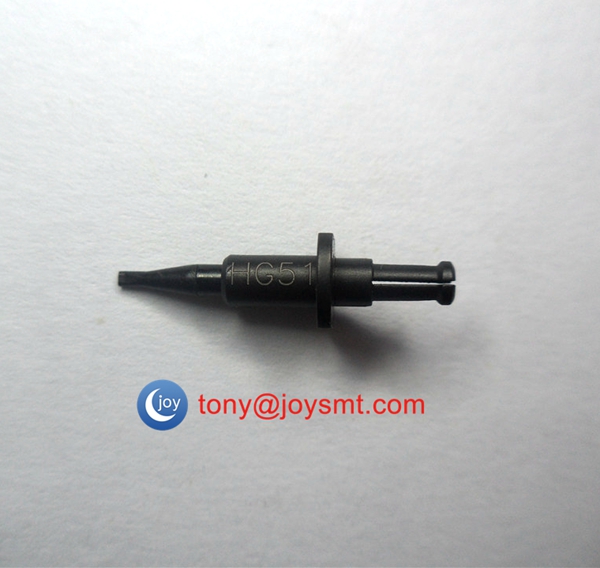

Product description HITACHI HG51 NOZZLE 6301528472

HITACHI GXH HA10 HV01 PV01 PV02
HITACHI GXH HV31/HV51/HV81
HITACHI GXH HV02/HV03/HA04/HA05/HA09
HITACHI GXH PA05/PA07/HB03/HB04
HITACHI GXH HG31/HG51/HG81
HITACHI GXH RA04/RA05/RA06/RV01/VA06/VA07
HITACHI GXH VF01/VF02
HITACHI GXH VC02/VC05/VC16/VC31/VE11
HITACHI GXH VE18/VE35/VE41
HITACHI GXH FA04/FA06/FF01/FF02


Part Number
Description
630 128 4842 (#101) HA01 0.7x0.4/ø0.25 (for 0603)
630 132 2322 (#111) PV01 1.1x0.6/ø0.38 (for 1005)
630 132 9857 (#112) PV02 1.7x0.9/ø0.65 (for 1608)
630 129 2892 (#104) HV03 ø1.3/ø0.9 (for 2012)
630 129 2922 HA04 ø1.8/ø1.2 (for 3216)
630 129 2939 (#108) HA05 ø3.0/ø2.0
630 129 2946 HA09 ø6.0/ø4.5
630 152 8267 HV31 ø0.7x0.4/ø0.2
630 152 8472 HV51 ø0.6/ø0.4
630 158 9084 HV81 ø1.7x0.9/ø0.7
630 158 6571 HG31 ø0.7x0.4/ø0.2
630 159 9632 HG51 ø0.6/ø0.4
630 161 3501 HG81 ø1.7x0.9/ø0.7
630 128 4842 HA10 ø0.7x0.4/ø0.2
630 129 2878 HV01 ø0.6/ø0.4
630 129 2885 HV02 ø0.9/ø0.7
630 133 5407 PA05 ø2.6/ø2.0
630 129 2908 HB03 Melf ø1.3/ø0.9
630 129 2915 HB04 Melf ø1.8/ø1.1
630 129 8214 VF01 ø8.0/ø3.0
630 129 8252 VF02 ø12.0/ø8.0
630 130 0283 VG35 8.0x2.2
630 130 0238 VG51
630 130 7831 VG52 7.0x1.4
630 130 0245 VT32 ø12.0x1.9
630 130 8692 VT69 ø8.6 (O-ring)
FA04 ø1.8/ø1.1
630 132 9260 FA05 ø3.0/ø2.0 Pad
630 132 9277 FA06 ø5.0/ø3.0 Pad
FF01 ø8.0/ø3.0
FF02 ø12.0/ø8.0
630 133 3823 WT32 ø12.0x1.9
630 130 0238 WT51 ø18.0x4.0
630 135 2060 WG51 9.0x7.0/1.4x0.6
630 133 3847 WG52 7.0x5.0/1.4x0.6
VC76 12.0x11.0/1.0x0.5

Hitachi Sigma-G4, Sigma-G5 Nozzles (Σ-G4, Σ-G5 Nozzles)
Part Number
Description
HV32C HV32C
HV52C HV52C
HV82C HV82C
HV21C HV21C
HG32C HG32C
HG52C HG52C
HG82C HG82C
HV13C HV13C
HV14C HV14C
HV15C HV15C
HB03C HB03C
HB04C HB04C



Item Item Name Component Tip Material
PV01 Hitachi GXH-1/3 Nozzle 1005 Ceramic
PV02 Hitachi GXH-1/3 Nozzle 1608 Ceramic
HV03 Hitachi GXH-1/3 Nozzle 2012 Ceramic
HA04 Hitachi GXH-1/3 Nozzle 3216 Ceramic
HA05 Hitachi GXH-1/3 Nozzle N/A N/A
HA09 Hitachi GXH-1/3 Nozzle SOP, QFP, PLCC N/A
HA10 Hitachi GXH-1/3 Nozzle 603 Ceramic
FF01 Hitachi GXH-1/3 Nozzle N/A N/A
FF02 Hitachi GXH-1/3 Nozzle N/A N/A
FA05 Hitachi GXH-1/3 Nozzle N/A N/A
FA06 Hitachi GXH-1/3 Nozzle N/A N/A
WF32 Hitachi GXH-1/3 Nozzle N/A N/A
WF300 Hitachi GXH-1/3 Nozzle N/A N/A
WT10 Hitachi GXH-1/3 Nozzle N/A N/A
HV31 Hitachi GXH-1/3 Nozzle 603 Diamond
HV51 Hitachi GXH-1/3 Nozzle 1005~2012 Diamond
HV81 Hitachi GXH-1/3 Nozzle 1068~2012 Diamond
HB03 Hitachi GXH-1/3 Nozzle Melf N/A
HB04 Hitachi GXH-1/3 Nozzle Melf N/A
VA06 Hitachi GXH-1/3 Nozzle N/A N/A
VG35 Hitachi GXH-1/3 Nozzle N/A N/A
VF07 Hitachi GXH-1/3 Nozzle N/A N/A


Item Item Name Component
PV01 Hitachi GXH-1/3 Nozzle 1005
PV02 Hitachi GXH-1/3 Nozzle 1608
HV03 Hitachi GXH-1/3 Nozzle 2012
HA04 Hitachi GXH-1/3 Nozzle 3216
HA05 Hitachi GXH-1/3 Nozzle N/A
HA09 Hitachi GXH-1/3 Nozzle SOP, QFP, PLCC
HA10 Hitachi GXH-1/3 Nozzle 603
FF01 Hitachi GXH-1/3 Nozzle N/A
FF02 Hitachi GXH-1/3 Nozzle N/A
FA05 Hitachi GXH-1/3 Nozzle N/A
FA06 Hitachi GXH-1/3 Nozzle N/A
WF32 Hitachi GXH-1/3 Nozzle N/A
WF300 Hitachi GXH-1/3 Nozzle N/A
WT10 Hitachi GXH-1/3 Nozzle N/A
HV31 Hitachi GXH-1/3 Nozzle 603
HV51 Hitachi GXH-1/3 Nozzle 1005~2012
HV81 Hitachi GXH-1/3 Nozzle 1068~2012
HB03 Hitachi GXH-1/3 Nozzle Melf
HB04 Hitachi GXH-1/3 Nozzle Melf
VA06 Hitachi GXH-1/3 Nozzle N/A
VG35 Hitachi GXH-1/3 Nozzle N/A
VF07 Hitachi GXH-1/3 Nozzle N/A
