JUKI KE2070 Placement Machine
Chip theoretical speed of 0.155 seconds / chip
Mounting range 0402 (British 01005) chip ~ 33.5mm square components
Positioning accuracy of plus or minus 0.05mm
PCB size 330 × 250mm
Equipment size 1,400 × 1,393 × 1,455mm
Rated power 3KVA
Equipment weight 1530kg
The JUKI 2070 is an upgraded version of the JUKI 2050 with 6 standard patch heads for high-precision
image recognition of small IC components, theoretically 23300 points per hour.
The actual production capacity of about 20000 hours per hour.JUKI KE products over the years to get highly
acclaimed customers, as the module concept of a single module,
to support flexible and flexible production line composition.
JUKI 2070 parameters

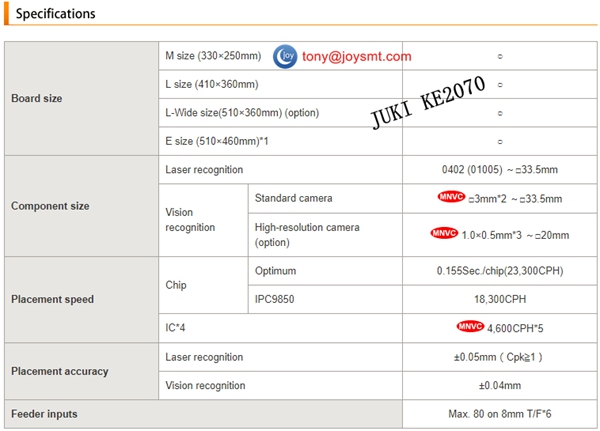

Model Name High-speed Mounter KE-2070M / L / E
Substrate size M Substrate (330 × 250mm)
L substrate (410 × 360mm)
E substrate (510 × 460mm)
Component height 6mm specifications
12mm specifications
20mm Specifications _
25mm Specifications _
Component Size Laser Identification 0402 (English 01005) chip ~ 33.5mm square components
Image recognition 1.0 × 0.5mm ~ 33.5mm square components
Component placement speed of the best 0.155 seconds / chip (23300CPH)
IC element 4600CPH *
Component placement accuracy Laser recognition ± 0.05mm
Image recognition ± 0.04mm
Component mounting types up to 80 (converted into 8mm band)
Power three-phase AC200 ~ 415V
Rated power 3KVA
Use air pressure 0.5 ± 0.05Mpa
Air consumption (standard state) 345L / min
Device Size (W × D × H) M Substrate 1,400 × 1,393 × 1,455 mm
L substrate 1,500 × 1,500 × 1,455mm
E substrate 1,730 × 1,600 × 1,455 mm
Weight about 1530kg
