Product description

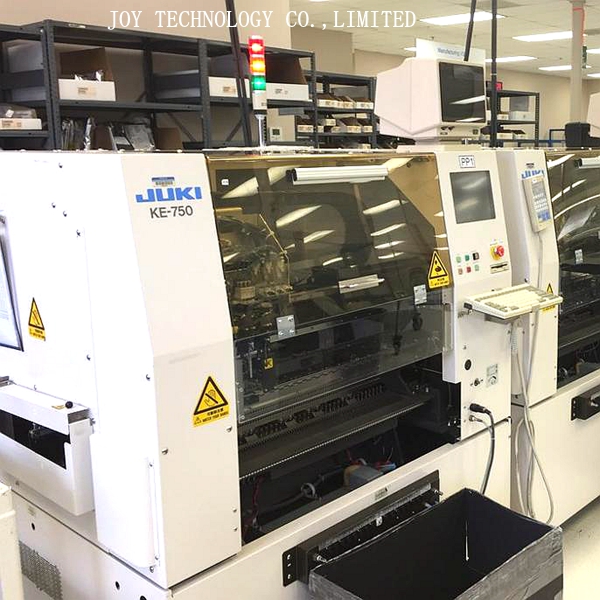

JUKI KE750 Chip Mounter specifications
JUKI750 Placement machine is a medium-sized multi-function placement machine,
generally 1998-2000 equipment. Three heads, laser alignment, accuracy 0.08MM.
As an economical device, 750 Mounter low risk, medium speed, and more Function, low cost.

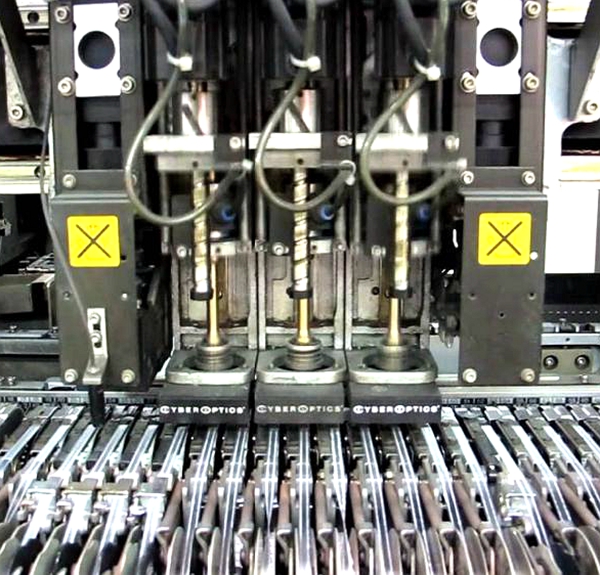

JUKI 750 placement head: 3
JUKI750 expected station: 80
Placement speed: 0.25sec / chip (3 at the same time attached to the attached)
JUKI750 placement accuracy:
± 0.1mm chip
± 0.09mm QFP (Laser)
Placement range: 1005 ~ □ 23.5mm (By Laser)
JUKI750 PCB size:
Maximum: 330 * 250mm
Min: 50 * 30mm
PCB thickness: 0.4 ~ 4mm
JUKI750 appearance size: 1400 * 1440 * 1460 (including lights 2000mm)
Weight: 1100 ㎏
JUKI mid-speed placement machine 750
automatic / manual
automatic
Patch speed
8000 (grain / hour)
PCB Dimensions:
L: 50.0 mm (min) -330.0 mm (max), W: 30.0 mm (min) -250.0 mm (max).
PCB thickness:
0.40mm (min) -4mm (max)
Technical Parameters:
Component placement range:
0402-48mm * 48mm (chip, sot, sop, melf, QFP, connector, sop, plcc)
Component height:
0.3mm-10.5mm.
Pin spacing (Min):
0.4mm.
Component Dimensions:
0.5mm * 1.0mm (Min), 23.5mm * 23.5mm (Max).
Nozzle Model:
10X, 20X.
Mounting accuracy:
± 0.1mm (LA), ± 0.04mm (LAIC)
Mounting Speed (Max):
11,250 components / hour
speed:0.25s
3 heads
laser collection
accuracy:0.08mm
angle accuracy :0.001 degree.
thickness of PCB: 0.4mm~4mm
component size: 1.0*1.0*0.5MM~32MM*11MM.QFP 20MM*20MM. for bigger size optional
power supply: single phase
power: 2KW
weight:1100kg
JOY TECHNOLOGY have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
