Product description

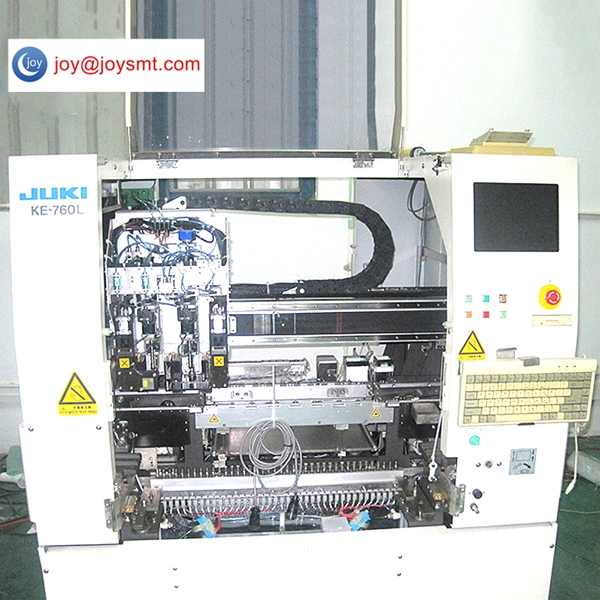

JUKI KE-760 Chip Mounter specifications
Used JUKI760 placement machine is a medium-sized economy multi-functional placement machine,
generally about 1999 equipment,high rigidity rack,integrated casting molding,increased 40% rigidity,
the use of XY independent drive placement head,2 Placement head,laser alignment,the accuracy of 0.03MM.
As a second-hand economy equipment in IC placement accuracy few models can compete with it,
so the second-hand placement machine market is still welcomed by the majority of users,
it is very Suitable for low-cost investment and entrepreneurs.
Device parameters
Placement head: 2 placement head (at the same time,the adsorption attached alternately)
Mounting accuracy: ± 0.03mm / chip (laser recognition)
± 0.09mm / QFP (laser recognition)
Patch speed: 0.32 seconds / CHIP,1.8 / sec QFP)
Substrate size: Min 330 × 250 mm
Component range: 0402 ~ 50 × 50㎜
Power: Single-phase AC220V,50 / 60Hz,2.5KVA
Air pressure and air consumption: 0.5Mpa ± 10%,150N1 / min
Overall dimensions: 1400 × 1300 × 1551㎜
Weight: 1150㎏
feeder float detection
large compliment of nozzles included
both lasers in good shape and well within spec
60 feeders 8x4mm included
5 ‚ 12mm feeders included
5 16mm feeders included
1.JOY TECHNOLOGY have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty.
