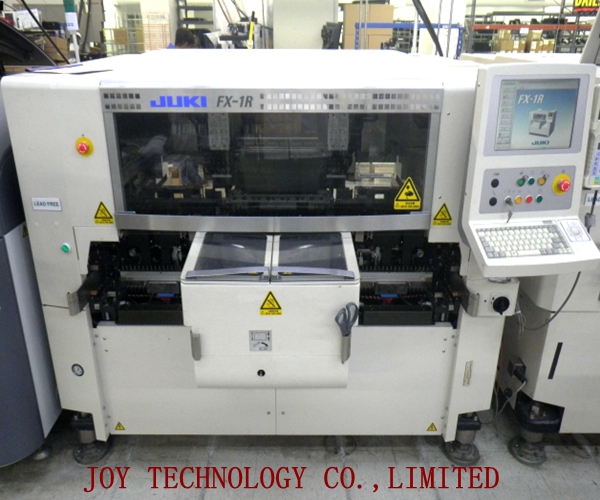

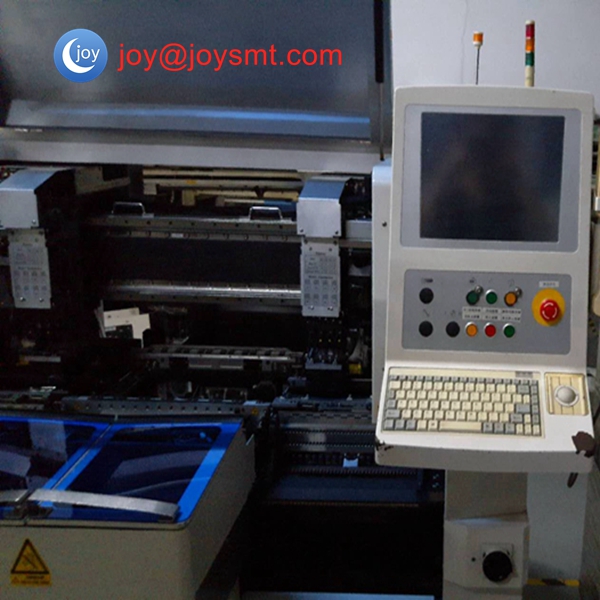

JUKI FX-1R Specification and price|JUKI FX-1R Machine

ORIGINAL USED JUKI FX-1R MACHINE PRICE Range is from USD25000 to USD35000.
It depends on the working status of juki fx-1r pick and place machine.

The High-speed Modular Mounter FX-1R is a traditional modular chip

shooter driven at extreme speeds.  Refinements in the drive system
deliver real world improvements in actual throughput.
For the 0402-20mm chip or special-shaped components, small-scale high-speed placement.

JUKI fx-1r Mounter Features:
JUKI high-speed placement machine fx-1r adopts advanced linear motor and unique
hi-drive mechanism for high-speed placement.
Inherited the traditional concept of modular placement machine,
 and realized a high-speed placement of the placement machine.
Reasonably adjust all parts and improve the actual mounting speed.

JUKI Mounter fx-1r parameters:
Board size: 410*360mm
Component height: 6mm
33,000CPH：chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 （0201） to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
Component Size: Laser Recognition 0603 (Inch 0201) Chip ~20mm Square Element or 26.5*11mm
Component placement speed:chip:33000cph (best condition)
Chip piece: 25000cph (ipc9850)
Component placement accuracy: ±0.05mm
Component placement type: up to 80 types
Power supply: three-phase ac200~415v
Rated power: 3kva
Air pressure: 0.5±0.05mpa
Machine size: 1,880×1,731×1,490mm

Weight: about 2000kg

JOY TECHNOLOGY CAN ALSO SUPPLY JUKI SMT PARTS AS FOLLOWS：

JUKI FX-1R L809E0210A0 YA MOTOR ASM
JUKI FX-1 40026882 YA AXIS MOTOR DRIVER
JUKI FX-1 40026784 YB AXIS MOTOR DRIVER
JUKI FX-1 40026786 X SERVO DRV ASM
JUKI FX-1R 40026788 YA AXIS SERVO AMP(1KW)
JUKI FX-1R 40026790 YB SERVO DRV ASM
JUKI FX-1R 40026792 X SERVO DRV ASM
JUKIFX-1/R L185E0210A0 HOD ASSEMBLY
JUKIFX-1R L901E521000 ZT SERVO AMP
FX-1/R BELT L171E121000 CONVEYOR BELT S FX-1/R
FX-1/R BELT L167E521000 CONVEYOR BELT C FX-1/R
FX-1/R BELT L151E421000 TIMING BELT Z FX-1/R
FX-1/R BELT L150E821000 TIMING BELT T FX-1/R



JUKI2070 40044539 SERVO AMP 2000W Y AXIS
JUKI2070 40044538 SERVO AMP 750W X AXIS
JUKI2050 40062552 XY AMP BOARD
JUKI2050 40062555 ZT DRIVER
JUKI2050 40003261 ZT JHRMB
JUKI2050-2070 40003280 CPU BOARD
JUKI2010-2060 E9609729000 MCM
JUKI2050 40003259 XMP CPCI
JUKI2050 40001926 HEAD MAIN PCB ASM
JUKI2050-2070 BY DRUVER ASN
JUKI2050-2070 40001920 IPX3 PCB ASMA
JUKI2050-2070 40001943 IO CTRL PCB ASM
JUKI2050-2070 40001941 BASE FEEDER PCB ASM
JUKI2050 40001947 CARRY PCB ASM
JUKI2070 40001924 SAFETY PCB ASM
JUKI2070 40044519 IEEE1394 BOARD
JUKI2010-2070 E9649729000 HOD ASM

JUKI750-760 E1700721000 HOD BOX AS
JUKI AIR COMBINATION PF0553040A0
JUKI 40046649 ATC OFFSET BOSS(80)
JUKI SHUTTLE COVER E3215717000
JUKI 40035176 LINEAR SCALE ADJUSTJIG Y
JUKI ANTI-ADHESIVE PLATE A E1621706A00
JUKI PIO PWB C ASM E86067000C0
JUKI 40061021 ANTI_ADHESIVE_PLATE
JUKI 40016054 DIFFUSER EC ASM
JUKI2010-2040 E9620729D00 Y DRIVER
JUKI2010-2040 E9626729000 DRIVER(FOR 4SHAFT MNLA)
JUKI2010-2040 E861372BA0 HEAD MAIN PWB B ASM
JUKI2010-2040 E9656729000 CPU BOARD
JUKI2010-2040 E8607729C0 I/O CTRL PWB
JUKI2010-2040 E8627290C0 BASE-FEEDER BOARD ASM
JUKI2010-2040 E86087290B0 IMG-CPU BOARD B ASM
JUKI2010-2040 E9607729000 XMP
JUKI2010-2040 E8617729CA0 OPERATION SW BOARD C ASM




JUKI 750/760 Z/T axis Motor P50B03003PXS22 100V 30W E93077250A0 E93067250A0
JUKI 750/760 X axis Motor TS4513N1820E200 200V 600W E9611721000
JUKI 750/760 Y axis Motor TS4514N1827E200 200V 800W
JUKI 2050/2060 X axis Motor TS4613N1020E200 600W
JUKI 2050/2060 Y axis Motor TS4616N1020E200 1140W
JUKI 2050/2060 Z axis Motor TS4633N2026E602 48V 40W 40003253
JUKI 2050/2060 T axis Motor TS4631N2022E600 48V 13W 40003254
JUKI 2060 R Z axis Motor TS4603N1320E601 48V 100W 40003255
JUKI 2060 R T axis Motor TS4601N1620E600 30W 40003256
JUKI 2070/2080 X axis Motor HF-KP73D-S1 750W
JUKI 2070/2080 Y axis Motor HC-RP153D-S2 1500W
JUKI 2070/2080 Z axis Motor HC-BH0336LW4-S1 30W 40044534
JUKI 2070/2080 T axis Motor HC-BP0136D-S1 10W
JUKI FX-1/FX-1R Z axis Motor HC-BH0336L-S14 30W
JUKI FX-1/FX-1R T axis Motor HC-BH0136L-S14 10W
JUKI FX-1/FX-1R Y axis Motor HC-MFS73(-S33) 750W
JUKI FX-3/FX-3R Z axis Motor HC-BH0336LW4-S1 30W PN 40048065


JUKI 2010 Z axis Motor TS4633N2020E600 48V 30W E9629729000
JUKI 2010 T axis Motor TS4632N2020E600 48V 20W
JUKI 2010 X axis Motor TS4509N2821E200 400W
JUKI 2010 Y axis Motor TS4515N2821E201 950W
JUKI 2020 R Z axis Motor TS4501N1827E600 30W
JUKI 2030 X axis Motor TS4513N2821E200 600W
JUKI 2030 Y axis Motor TS4516N2821E200 1140W
JUKI 730/740 Z axis Motor L404-151EL8 24V 40W
JUKI 730/740 T axis Motor L402-021EL0 24V 23W
JUKI 740 R Z axis Motor L406-011EL8 24V 60W
JUKI 710 Z axis Motor L404-011E17 24V 40W
JUKI 1700 X axis Motor TS4513N2820E200 600W
JUKI 1700 Y axis Motor TS4509N2820E200 400W
JUKI 1700 T axis Motor TS4509N6022E200 400W
JUKI 1700 TS4501N1020E100 100W
JUKI 1710 HC-KFS73-S3 750W
JUKI 1710 HC-KFS43 400W
JUKI 1710 HC-KFS73B-S3 750W
JUKI 1710 HC-KQ13BL-S21 100W
JUKI 775 TS4509N1023E200 400W
JUKI 775 TS4503N1023E100 100W
JUKI MTC-TS4SN TS4509N1021E100 400W
JUKI MTC-TS5SN TS4509N6021E100 400W
