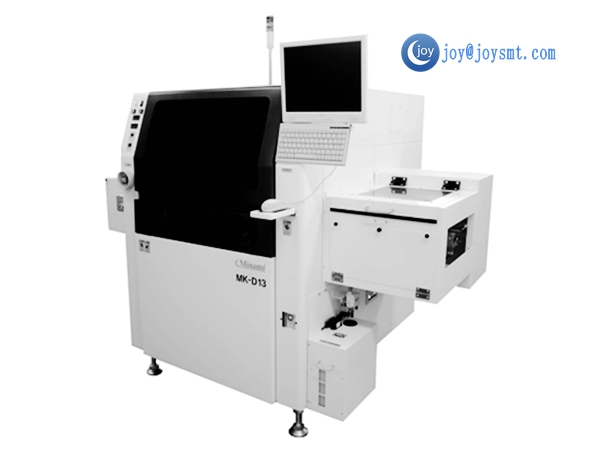

Multi Alignment Max：50pcs/Tray
Simultaneous printing of multiple pieces of individual PCB on tray.
High Accuracy ±0.025mm
Position correction of each piece by image recognition.
High-speed UPH：1000 or over＊At 50pcs PCB on the tray
Approx 1.4 times faster processing speed than conventional model (maximum 24 pcs)
Rotary squeegee method (Option)
Products Outline
Materials
Tray size 310 x 160mm
Number of the PCB 2 ～ 50 Piece
Minimum size of PCB 10 x 10mm
Stencil size X:650mm x Y:550mm
Performances
Productivity UPH 1,000 or over
Repeatability ±0.025mm
Specifications
Direction of Setting work Left→Right / Right→Left
Pring Direction Front ⇔ Rear
Distribution line From floor 900±20mm
UI language Japanese / English / Chinese / Korean
Power supply utility Single phase 200V～240V
Frequency 50/60Hz
Machine Weight Approx.900kg
Lay out 1870（W）×1287（D）×1460（H）mm
Option
Solder Automatic supply (Jar of 500g)
Rotary squeegee
UPS
Table backup PWB Vacuum
