Product description

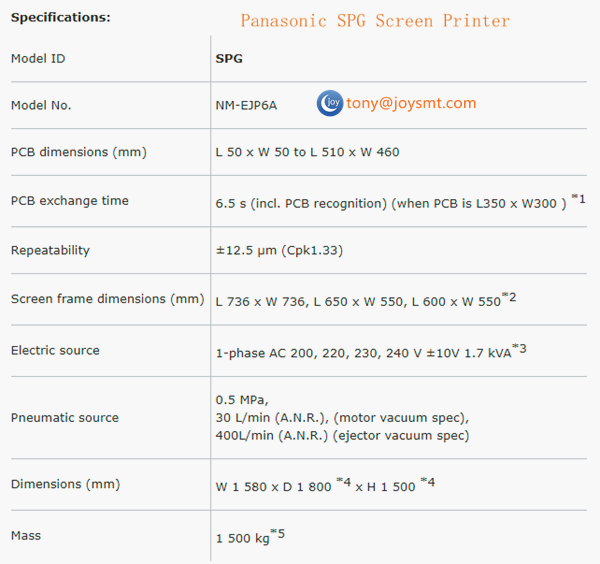

1: PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth.
2: For mask specifications, please see the specification.
3: Including blower and vacuum pump"Option"
4: Except for the signal tower and the touch panel.
5: In case of full options

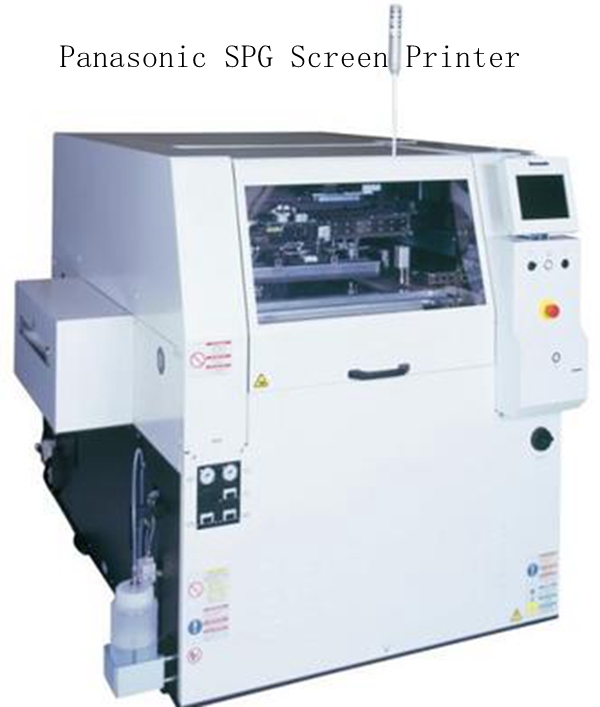

Lean, high speed, screen printing. Adaptable to dual lane for faster production, the Panasonic SPG can also handle large boards.
A great companion for the AM100 Placement Machine

Panasonic's SPG high-speed screen printing machine is the ultimate solution for lean SMT manufacturing. Our original uni-floating printing method reliably delivers the right amount of solder in the right form with high-speed snap-off and reduced solder waste. The SPG's intuitive interface enables the operator to set parameters based on production requirements-making print condition adjustments nearly automatic.

Equipped with 3 conveyors, PCB exchange time is reduced, making sure the printer does not become the bottleneck of the production line. The Panasonic SPG's feedback and feed-forward inspection system also helps further enhance overall line productivity.

Features that enable high productivity and stable quality:

Hybrid squeegee head which has a good track record with our highly functional models, is equipped as standard. Together with stabilizing rolling solders, printing cycle time is reduced.
High-speed mask cleaning - New-type cleaning mechanism reduces paper consumption. Moreover, parallel processing of transfer and cleaning cuts back loss time.
3 conveyors are equipped as standard for shorter PCB exchange time. (supported PCB length up to MAX 350mm)
We provide optimum options according to your production style:

Pot-type solder paste auto feeding unit - Controlling solder volume on mask by line sensor, it enables continuous printing for a long time with stable quality.
Universal mask holder - One step change of a mask size without using tools can dramatically ease your changeover tasks.
One-touch support pin set - This is a support unit for batch replacement of support pins. Magnet pins can be set at arbitrary positions by checking PCB.
PCB support function - The support plates, integrated with the conveyor rails, support the back side of the PC board from end to end, which realizes the stabilization of printing quality.
Mask vacuum support mask-release - Printing mask can be vacuumed during printing and support-table release.It can enable more stable rinting by eliminating shift and stick of a mask.
Inspection results feedback support - According to the correction data of shifted printing positions analyzed by solder paste inspection (APC correction data), it corrects printing positions (X,Y,θ). 3D inspection equipment of another company can be also connected. Please inquire with your sales representative for more details.
Pattern recognition feature - Printing positions are corrected by recognizing deviations of each FPC on carrier (standard feature)Information on defective FPC with large deviations can be transferred to placement machines (customized support. Please confirm with our sales representatives for details).
