Yamaha Nozzle

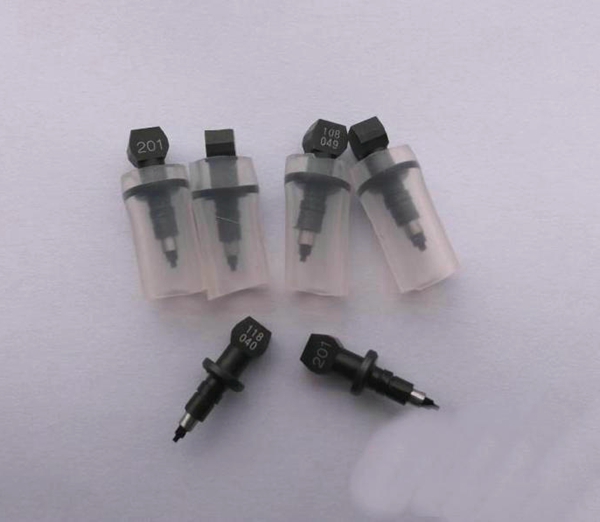

Yamaha Nozzle 221A

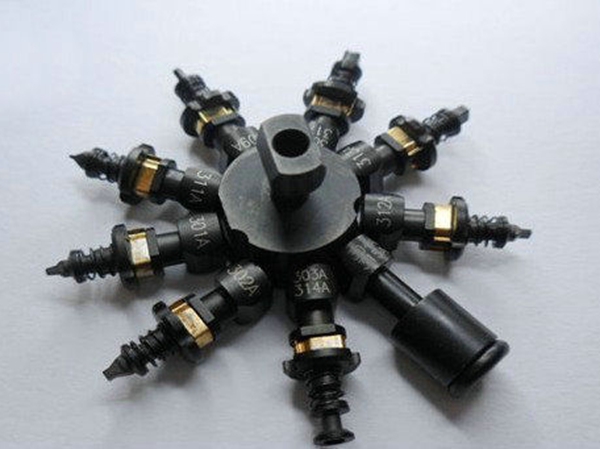

Yamaha Nozzle 301 302 309 311312 313 314

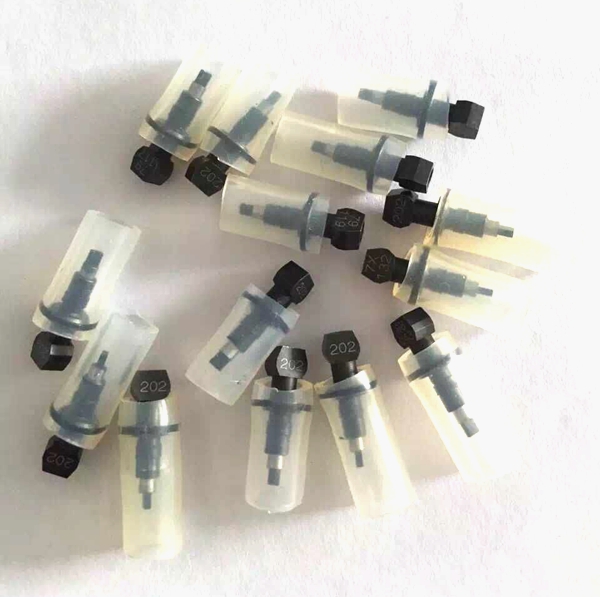

Yamaha Nozzle 202
Joy technology Co.,Limited can supply Yamaha nozzle stock list as follows：
|
YVL88 II / YV100 II NOZZLE (EMERALD / TOPAZ II)
|
|
Part number
|
Description
|
|
KM0-M711A-02XD
|
YVL88 / YV100 NOZZLE - A (TYPE 31) - SHAPE '-' (FIXED) (532236010198A) (DIAMOND TIP)
|
|
KM0-M711A-02XD
|
YVL88 / YV100 NOZZLE - A (TYPE 31) - SHAPE 'X' (FIXED) (532236010198B) (DIAMOND TIP)
|
|
KM0-M711A-02RD
|
YVL88 / YV100 NOZZLE - A (TYPE 31) - SHAPE 'O'(FIXED) (532236010433) (DIAMOND TIP)
|
|
KM0-M711B-00X
|
YVL88 / YV100 NOZZLE - B (TYPE 32-1) (532236010199)
|
|
KM0-M711C-00X
|
YVL88 / YV100 NOZZLE - C (TYPE 32-2) (532236010201)
|
|
KM0-M711D-00X
|
YVL88 / YV100 NOZZLE - D (TYPE 33) (532236010202)
|
|
KM0-M711E-00X
|
YVL88 / YV100 NOZZLE - E (TYPE 34) (532236010203)
|
|
KM0-M711F-00X
|
YVL88 / YV100 NOZZLE - F (TYPE 35) MELF (532236010272)
|
|
KM0-M711A-02R
|
YVL88 / YV100 NOZZLE - A (TYPE 39) OD 1.2/ ID 0.6 (ROUND TIP) SPRING LOADED (DIAMOND TIP)
|
|
KM0-M711A-302D
|
YVL88 / YV100 NOZZLE - A (TYPE 31) - 'X' SPRING LOADED (1.2 X 0.8 ) (DIAMOND TIP) (532236010425)
|
|
KM0-M711A-0807D
|
YVL88 / YV100 NOZZLE - A (TYPE 31) - 'X' SPRING LOADED ( 0.8 X 0.7) (DIAMOND TIP)
|
|
YV112 PICK UP NOZZLE (SAPPHIRE / COMET)
|
|
Part number
|
Description
|
|
KG2-M7191-100
|
YV112 PICK UP NOZZLE TYPE 1 OD 0.9 /ID 0.5 (532236010335)
|
|
KG2-M7191-200
|
YV112 PICK UP NOZZLE TYPE 2 OD 1.4 / ID 0.8 (532247960083)
|
|
KG2-M7191-300
|
YV112 PICK UP NOZZLE TYPE 3 OD 3.O / ID 2.0 (532247960084)
|
|
KG2-M7191-400
|
YV112 PICK UP NOZZLE TYPE 4 OD 6.0 / ID 4.0 (532236010289)
|
|
KG2-M7191-500
|
YV112 PICK UP NOZZLE TYPE 5 OD 10.0 / ID 8.0(532236010291)
|
|
KG2-M7191-600
|
YV112 PICK UP NOZZLE 9 HOLES (996500007827)
|
|
YMH / CSM 66/84 PICK UP NOZZLE
|
|
Part number
|
Description
|
|
K38-M7113-H00
|
YMH PICK UP NOZZLE a,OD 1.1X0.7 / ID 0.4 (532247960064)
|
|
K38-M7113-B03
|
YMH PICK UP NOZZLE b, OD 1.8X1.1 / ID 0.8 (532247960075)
|
|
K38-M7113-C00
|
YMH PICK UP NOZZLE c, OD 3.0 / ID 2.0 (532247960059)
|
|
K38-M7113-D01
|
YMH PICK UP NOZZLE d, OD 5.0 / ID 3.5 ** (532247960061)
|
|
K38-M7113-E02
|
YMH PICK UP NOZZLE e, OD 1.1 / ID 0.7 ( V )(532247960062)
|
|
YM84 PICK UP NOZZLE
|
|
Part number
|
Description
|
|
KH-M7113-B00
|
YM84 PICK UP NOZZLE ID 0.7 (TYPE 2)
|
|
KH-M7113-C00
|
YM84 PICK UP NOZZLE ID 2.0 (TYPE 8)
|
|
YM51VMII PICK UP NOZZLE (Machine Type: YM51VMII, 53VTII, 58VAII, 100VPII)
|
|
Part number
|
Description
|
|
KG9-M7113-100
|
YM51VMII NOZZLE S, COMP. OD 3.0 /ID 1.0
|
|
KG9-M7113-200
|
YM51VMII NOZZLE M OD 10.0 / ID 7.0
|
|
KG9-M7113-300
|
YM51VMII NOZZLE L OD 15.0 / ID 12.0 **
|
|
YAMAHA YM51VM PICK UP NOZZLE (Machine Type: YM51VM, 53VT, 58VA, 100VP)
|
|
Part number
|
Description
|
|
K94-M7113-10X
|
YM51VM NOZZLE L OD 12.0 / ID 10.0
|
|
K94-M7113-20X
|
YM51VM NOZZLE L OD 8.0 / ID 6.0
|
|
K94-M7113-30X
|
YM51VM NOZZLE L OD 3.0 / ID 2.1
|
|
YAMAHA YV100X/Xg NOZZLE (TOPAZ X/X II)
|
|
Part number
|
Description
|
|
KV8-M71UX-00XD
|
YV100X NOZZLE TIP - TYPE 7XF (0.8 X 0.7) (DIAMOND TIP)
|
|
KV8-M71U1-002D
|
YV100X NOZZLE TIP - TYPE 71F (1.2 X 0.8) 'X' (DIAMOND TIP)
|
|
KV8-M71U2-001D
|
YV100X NOZZLE TIP - TYPE 72F (0.92 X 1.75) 'X'(DIAMOND TIP)
|
|
KV8-M71U9-A01D
|
YV100X NOZZLE TIP - TYPE 7WF (1.2 / 0.6) (DIAMOND TIP)
|
|
KV8-M71NX-A0XD
|
YV100X NOZZLE ASSY - TYPE 7XF (0.8X0.7) (DIAMOND TIP)
|
|
KV8-M71N1-A00D
|
YV100X NOZZLE ASSY - TYPE 71F (DIAMOND TIP) (532236010484)
|
|
KV8-M71N2-A00D
|
YV100X NOZZLE ASSY - TYPE 72F (DIAMOND TIP) (532236010485)
|
|
KV8-M71N3-A00
|
YV100X NOZZLE ASSY - TYPE 73F (532236010486)
|
|
KV8-M71N9-A00
|
YV100X NOZZLE ASSY - TYPE 79F (1.2/0.6) (DIAMOND TIP)
|
|
KV8-M71U6-001
|
YV100X NOZZLE HOUSING
|
|
KV8-M7107-000
|
YV100X SPRING (MOQ: 10pcs)
|
|
KV8-M7105-001
|
YV100X SCREW (MOQ: 10pcs)
|
|
KV8-M7700-A0XD
|
YV100X NOZZLE ASSY - TYPE 7XA (0.8 X 0.7) (DIAMOND TIP)
|
|
KV8-M7710-A0XD
|
YV100X NOZZLE ASSY - TYPE 71A (1.2 X 0.8) (DIAMOND TIP) (946602962471)
|
|
KV8-M7720-A0XD
|
YV100X NOZZLE ASSY - TYPE 72A (1.7 X 0.94) (DIAMOND TIP) (946602962481)
|
|
KV8-M7730-00X
|
YAMAHA 73A ASSY NOZZLE (996500002777) (946602962451)
|
|
KV8-M7740-A0X
|
YAMAHA 74A ASSY NOZZLE (532236010495)
|
|
KV8-M7760-00X
|
YAMAHA 76A ASSY NOZZLE (MELF) (532236010496)
|
|
KV8-M7790-A0XD
|
YAMAHA 79A ASSY NOZZLE (1.2 / 0.6) (DIAMOND TIP)
|
|
YAMAHA YV88X/Xg (EMERALD X/X II)
|
|
Part number
|
Description
|
|
KV7-M87GF-A0X-TD
|
YV88X NOZZLE TIP - TYPE 69F (OD 1.2/ID 0.6) (DIAMOND TIP)
|
|
KGA-M71N1-A0-TD
|
YV88X NOZZLE TIP - TYPE 61F (2 HOLE) (DIAMOND TIP)
|
|
KGA-M71N2-A0-TD
|
YV88X NOZZLE TIP - TYPE 62F (0.92 X 1.75) 'X' (DIAMOND TIP)
|
|
KV7-M87GF-A0X
|
YV88X NOZZLE ASSY- TYPE 69F (OD 1.2/ID 0.6) (DIAMOND TIP)
|
|
KGA-M71N1-A0X
|
YV88X NOZZLE ASSY - TYPE 61F (2 HOLE) (DIAMOND TIP) (996500004762)
|
|
KGA-M71N2-A0X
|
YV88X NOZZLE ASSY - TYPE 62F(0.92 X 1.75)'X'(DIAMOND TIP) (996500004761)
|
|
KV7-M71N3-A1X
|
YV88X NOZZLE ASSY - TYPE 63F (996500004759)
|
|
KV7-M71N4-A0X
|
YV88X NOZZLE ASSY - TYPE 64F (965500004758)
|
|
KV7-M71N5-AOX
|
YV88X NOZZLE ASSY - TYPE 65F (965500004757)
|
|
KGA-M71N-H
|
YV88X NOZZLE HOUSING (FOR TYPE 6F/61F/62F)
|
|
KV7-M7700-0807D
|
YV88X NOZZLE ASSY - TYPE 6XA (0.8 X 0.7) 'X' (DIAMOND TIP)
|
|
KV7-M77GX-A0XD
|
YV88X NOZZLE ASSY- TYPE 6A (1.2 / 0.6) (DIAMOND TIP)
|
|
KV7-M7710-A1XD
|
YV88X NOZZLE ASSY - TYPE 61A (2 HOLE) (DIAMOND TIP) (946602962971)
|
|
KV7-M7720-A1XD
|
YV88X NOZZLE ASSY - TYPE 62A (0.92 X 1.75) 'X' (DIAMOND TIP) (946602962981)
|
|
KV7-M7730-A1X
|
YV88X NOZZLE ASSY - TYPE 63A (532236010476)
|
|
KV7-M7740-A1X
|
YV88X NOZZLE ASSY - TYPE 64A (532236010497)
|
|
KV7-M7750-A1X
|
YV88X NOZZLE ASSY - TYPE 65A (532253051374)
|
|
KV7-M7760-00X
|
YV88X NOZZLE ASSY - TYPE 66A (MELF) (532236010478)
|
|
YG200 PICK UP NOZZLE (MG2)
|
|
Part number
|
Description
|
|
KGT-M7710-A0XD
|
YG200 NOZZLE 201A ASSY (DIAMOND TIP) (0.8 X 0.7)
|
|
KGT-M7720-A0XD
|
YG200 NOZZLE 202A ASSY (DIAMOND TIP) (1.7 X 0.94)
|
|
KGT-M7730-A0X
|
YG200 NOZZLE 203A ASSY
|
|
KGT-M7760-A0X
|
YG200 NOZZLE 206A ASSY (MELF)
|
|
KGT-M7790-A0XD
|
YG200 NOZZLE 209A ASSY (ROUND TIP) (DIAMOND TIP)
|
|
KV8-M71N1-A0XD
|
YG200 NOZZLE ASSY - TYPE 71F (DIAMOND TIP)
|
|
KV8-M71N2-A0XD
|
YG200 NOZZLE ASSY - TYPE 72F (DIAMOND TIP)
|
|
KV8-M71N3-A00
|
YG200 NOZZLE ASSY - TYPE 73F
|
|
KV8-M71N9-A0XD
|
YG200 NOZZLE ASSY- TYPE 79F (1.2 / 0.6) (DIAMOND TIP)
|
|
YG100 PICK UP NOZZLE (MG1)
|
|
Part number
|
Description
|
|
KGS-M7710-A0XD
|
YG100 NOZZLE 211A ASSY (0.8 X 0.7) (949839600641)
|
|
KGS-M7720-A0XD
|
YG100 NOZZLE 212A ASSY (1.7 X 0.94) (949839600642)
|
|
KGS-M7730-A0XD
|
YG100 NOZZLE 213A ASSY (949839600643)
|
|
KGS-M7740-A0X
|
YG100 NOZZLE 214A ASSY (949839600644)
|
|
KGS-M7790-A0XD
|
YG100 NOZZLE 219A ASSY (ROUND TIP) (949839600646)
|
|
KV8-M71N1-A0XD
|
YV100X NOZZLE ASSY - TYPE 211F (949839600651)
|
|
KV8-M71N2-A0XD
|
YV100X NOZZLE ASSY - TYPE 212F (949839600652)
|
|
KV8-M71N3-A0X
|
YV100X NOZZLE ASSY - TYPE 213F (949839600653)
|
|
KV8-M71N9-A0X
|
YV100X NOZZLE ASSY- TYPE 219F (1.2/0.6) (949839600659)
|
|
YV86D / YV100D DISPENSING NOZZLE (CSM)
|
|
Part number
|
Description
|
|
K37-M7113-20X
|
YV86/YV100D DISP. NZ. 1D/1S (FOR SOLDER PASTE)
|
|
K37-M7113-10X
|
YV86/YV100D DISP. NZ. 1D/2S (FOR ADHESIVE)
|
|
K37-M7113-00X
|
YV86/YV100D DISP. NZ. 2D/2S (FOR ADHESIVE)
|
|
K37-M7113-40X
|
YV86/YV100D DISP. NZ. 2D/2S (FOR 1608 CHIPS)
|
|
YV64D DISPENSING NOZZLE (CSM)
|
|
Part number
|
Description
|
|
KG3-M7113-40X
|
YV64D DISP. NZ. 2D/2S OD 0.7/ ID 0.4 P=0.8
|
|
KM4-M7113-10X
|
YV64D DISP. NZ. 2D/2S OD 0.8/ ID 0.5 P=1.0
|
|
KM4-M7113-20X
|
YV64D DISP. NZ. 1D/2S OD 0.6/ ID 0.3
|
|
KM4-M7113-30X
|
YV64D DISP. NZ. 1D/2S OD 0.8/ ID 0.5
|
|
KM4-M7113-40X
|
YV64D DISP. NZ. 1D/2S OD 1.8/ ID 1.5 (SOP/ QFP)
|
|
KM4-M7113-50X
|
YV64D DISP. NZ. 1D/2S OD 1.5/ ID 1.0 (SOP/ QFP)
|
|
YMH HSD-X DISPENSING NOZZLE
|
|
Part number
|
Description
|
|
KV6-M7113-1XX
|
HSD DISP. NZ. 2D/2S OD 0.7/ ID 0.4 P=0.9 (TYPE 111)
|
|
KV6-M7113-2XX
|
HSD DISP. NZ. 2D/2S OD 0.8/ ID 0.5 P=1.3 (TYPE 112)
|
|
KV6-M7113-3XX
|
HSD DISP. NZ. 2D/2S OD 1.3/ ID 0.9 P=1.8 (TYPE 113)
|
|
KV6-M7113-4XX
|
HSD DISP. NZ. 1D/1S OD 0.7/ ID 0.4 (TYPE 114)
|
|
KV6-M7113-5XX
|
HSD DISP. NZ. 1D/1S OD 0.8/ ID 0.5
|
|
KV6-M7113-6XX
|
HSD DISP. NZ. 1D/1S OD 1.5/ ID 1.1
|
|
KV6-M711A-XXX
|
HSD DISP. NZ. 2D/2S OD 0.7/ ID 0.4 P=0.8 (TYPE 11A)
|
|
KV6-M711B-XXX
|
HSD DISP. NZ. 1D/1S OD 1.5/ ID 1.1 (TYPE 11B)
|
|
KV6-M711C-XXX
|
HSD DISP. NZ. 1D/1S OD 1.65/ ID 1.25
|
|
YAMAHA NOZZLE HOLDER / SPLINE SHAFT
|
|
Part number
|
Description
|
|
KV8-M7106-00X
|
YV100X BALL SPLINE SHAFT (DRWG. 0653F) (FOR HEAD 1,3,5 & 7)
|
|
KV8-M7106-50X
|
YV100X BALL SPLINE SHAFT (DRWG. 0651F) (FOR HEAD 2, 4, 6, & 8)
|
|
KV8-M7106-70X
|
YV100X NOZZLE HOLDER (DRWG. 0667E) (FOR HEAD 1,3,5 & 7)
|
|
KG-M7173-004
|
YV88II NOZZLE HOLDER (FULL SET) (DRWG. 0666) LENGTH: 49.8MM (W/SLEEVE)
|
|
KG-M7173-004H
|
YV88II NOZZLE HOLDER ONLY (DRWG. 0666) LENGTH: 37.9MM
|
|
KM8-M7106-00X
|
YV100 II SHAFT HEAD 1 ASSEMBLY (DRWG 0652D) LENGTH: 117.60MM (FOR HEAD 1 ONLY)
|
|
KM1-M7106-00X
|
YV100 II SHAFT HEAD 2 - 8 ASSEMBLY (DRWG 0654E) LENGTH: 106.10MM (FOR HEAD 2 - 8)
|
|
KM8-H
|
YV100II NOZZLE HOLDER ONLY (DRWG. 0668F) LENGTH: 36.5MM
|
|
KV7-M71M0-A0X
|
YVL88X NOZZLE SHAFT/HOLDER (DRWG 0250) LENGTH: 18.7MM
|
|
KG7-M7137-A0
|
YVL88X HOLDER LEAF SPRING (2 PCS)
|
