Yamaha Hybrid machines YSM20 - SMT Assembly
Since 2000, Yamaha Motor has used its surface mount technology to introduce its “i-CUBE” series of hybrid placers capable of performing a wide range of functions from surface mounting to automated assembly and manufacture of semiconductor products employing flipchips, etc.
This series has been well received in the industry for its outstanding accuracy and versatility for a wide range of applications.
Meanwhile, the trend toward greater compactness, density and multi-functional capabilities of the device modules used in cell phones, smart phones and digital home electronics has accelerated in recent years, and the market and scale of production for these products have grown. This has brought a need for surface-mounters with greater precision and production rate. At the same time there has been a growing call from manufacturers for machines with the capacity for mounting a mix of semiconductor devices (chips) and passive components and the capacity for multi-chip mounting involving the different types of devices (chips).

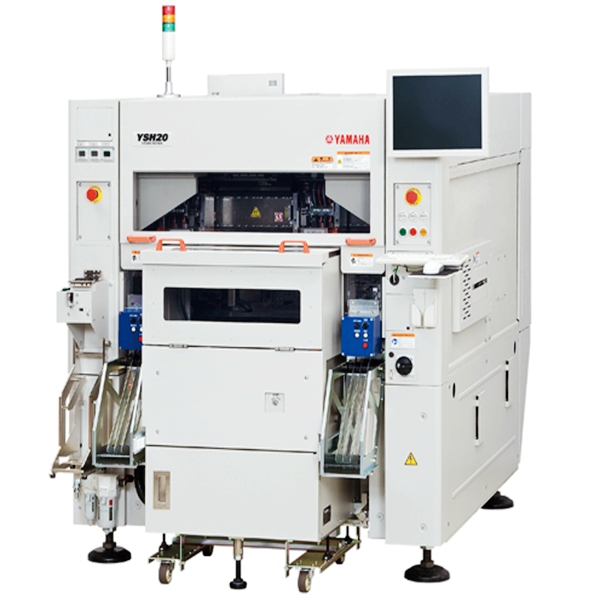

The new YSH20 is designed to answer these industry needs by offering the proven versatility of the i-CUBE series models and adding higher levels of precision and speed. The YSH20 will strengthen Yamaha Motor’s position in the semiconductor device manufacturing machine industry.
