Product description
The new S10 and 20 surface mounting, dispensing and inspecting machines provide superior product loading speed and accuracy. Including high versatiule mounting options from ultra small chips to large components, these models allow alternate dispensing and mounting.
The limitless surface mount technology is able to bring concave-convex, sloped and curved surfaces bringing enhanced expandability to suit production types over and above conventional flat board types. Head variation can also be set to a 6-axis 6-theta, or 12-axis 2-theta configurations. Cost performance is further enhanced through improved in placement capability. In addition, stable dispensing and inspecting is carried out thanks to the adoption of a color fiducial mark recognition camera and newly developed lighting units.

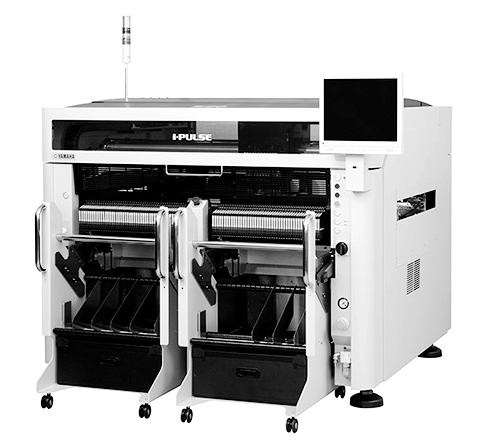

SMT Machine I-Pulse S10 & S20
FEATURES:
3D MID processes are achieved due to the new developed cast iron frame and tilt mechanism unit
3D hybrid functions
Large board handling capability
Excellent setup capability suitable for high-mix-low-volume production
