Product description

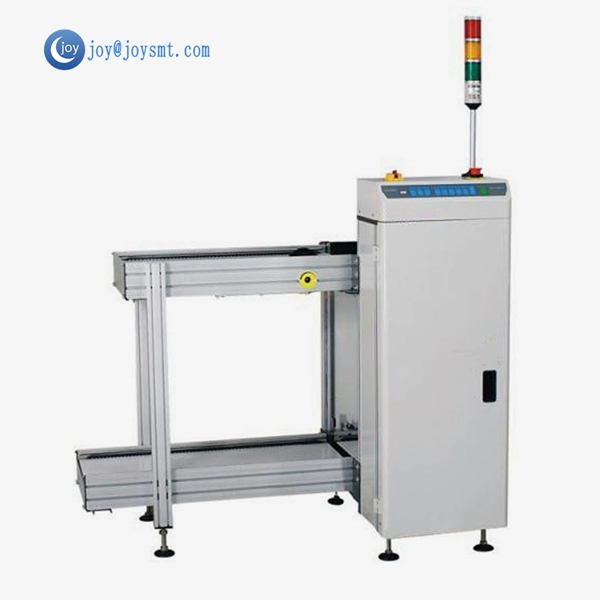

SMT PCB Loader
PCB Loader Feature：
Aluminum Alloy structure to keep machine stable and steady.
PLC + Mirco-computer control to ensure the running stable & reliable.
Touchscreen displaying ,Has the breakdown automatic diagnosis function,
The man-machine conversation is convenienty.
Multi-kinds of light and sound alarm function.
The pace of up or down for magazines can be set by PCB thickness.
Two Different size of magazines can be using together.
Humanization design to make no damage when PCB feeding so that it can raise the productivity.
Specification
Description:
This machine is adapted to the PCB loading or unloading automatically in the production line of SMT and AI
Magazine Qty:
2 Metarial Box
PCB Loading Time :
About 6 Seconds
Magazine Replacing Time :
About 30 Seconds
Pacing Selection :
10.20.30.40.50.60mm, Optional
Power Requirement:
AC110/220V±10V, 50/60Hz
Air Pressure:
4-6kg/cm2
PCB Thickness:
Thinnest 0.4mm
Structured design
Easy to operate touch-type LED control interface
Up and down pneumatic clamp to ensure that the location of the box accurate
Special gas design to ensure that will not break the PCB board
Wear-resistant cable, long service life
