Fuji nozzle

Location  : Home > Products> SMT Nozzle> Fuji nozzle

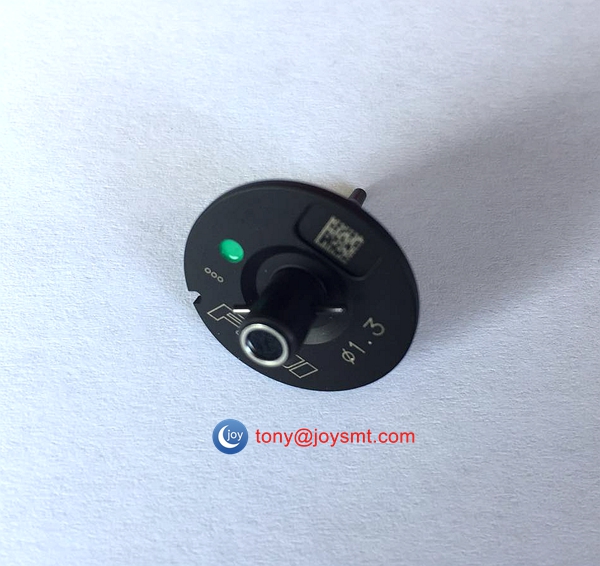

FUJI NXT H04 NOZZLE 1.3 AA06X00

Part No.: H04 NOZZLE 1.3 AA06X00

Brand: FUJI

Name/Size: NXT H04 NOZZLE

Specifiction: FUJI NXT Machine

Immediate inquiry
< >
Product description FUJI NXT H04 NOZZLE 1.3 AA06X00|FUJI SMT PARTS

FUJI NXT H04 NOZZLE 1.3 AA06X00|FUJI SMT PARTS

                                         FUJI NXT H04 NOZZLE 1.3 AA06X00|FUJI SMT PARTS


JOY TECHNOLOGY CAN SUPPLY OTHER FUJI NOZZLE AS FOLLOWS:

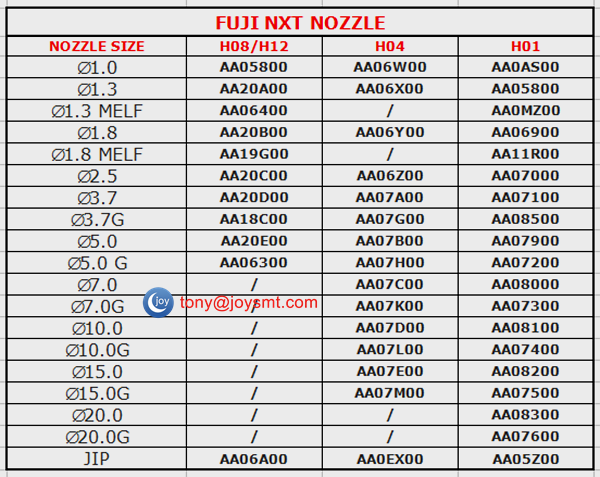

FUJI NXT NOZZLE LIST

CP4 NOZZLE
Part Number(OEM) Description
AMPH - 8710 CP4/S PICK UP NOZZLE Ø 0.7
AMPH - 8720 CP4/S PICK UP NOZZLE Ø 1.0
AMPH - 8730 CP4/S PICK UP NOZZLE Ø 1.3
AMPH - 8740 CP4/S PICK UP NOZZLE Ø 1.8
AMPH - 8750 CP4/S PICK UP NOZZLE Ø 2.5
AMPH - 8760 CP4/L PICK UP NOZZLE Ø 2.5
AMPH - 8770 CP4/L PICK UP NOZZLE Ø 3.7
AMPH - 8780 CP4/L PICK UP NOZZLE Ø 5.0




CP2-CP3 Nozzle
Part Number(OEM) Description
AGPH - 9560 CP3/S PICK UP NOZZLE Ø 0.7
AGPH - 9410 CP3/S PICK UP NOZZLE Ø 1.0
AGPH - 9130 CP3/S PICK UP NOZZLE Ø 1.3
AGPH - 9050 CP3/S PICK UP NOZZLE Ø 1.3 (MELF)
AGPH - 9470 CP3/L PICK UP NOZZLE Ø 1.3
AGPH - 9060 CP3/L PICK UP NOZZLE Ø 2.5
AGPH - 9430 CP3/L PICK UP NOZZLE Ø 3.4
AGPH - 9460 CP3/L PICK UP NOZZLE Ø 1.3 (MELF)


FUJI CP3 DARKPOINT PICK UP NOZZLE
Part Number(OEM) Description
AGPH - 9570 CP3/DPT-S DARK POINT Ø 0.7/ Ø 11.5
AGPH - 9550 CP3/DPT-S DARK POINT Ø 1.0/ Ø 11.5
AGPH - 9190 CP3/DPT-S DARK POINT Ø 1.3/ Ø 11.5
AGPH - 9200 CP3/DPT-S DARK POINT Ø 2.5/ Ø 16.5
AGPH - 9440 CP3/DPT-S DARK POINT Ø 3.4/ Ø 16.5


CP6 NOZZLE
Part Number(OEM) Description
AWPH - 9510 CP6/S PICK UP NOZZLE Ø 0.7
AWPH - 9520 CP6/S PICK UP NOZZLE Ø 1.0
AWPH - 9530 CP6/S PICK UP NOZZLE Ø 1.3
AWPH - 9550 CP6/S PICK UP NOZZLE Ø 1.8
AWPH - 9541 CP6/S PICK UP NOZZLE Ø 1.3 (MELF)
AWPH - 9580 CP6/L PICK UP NOZZLE Ø 2.5
AWPH - 9600 CP6/L PICK UP NOZZLE Ø 3.7
AWPH - 9591 CP6/L PICK UP NOZZLE Ø 2.5 (MELF)
AWPH - 9560 CP6/M PICK UP NOZZLE Ø 2.5


CP7 NOZZLE
Part Number(OEM) Description
ADCPH - 9510 CP7/S NOZZLE Ø0.4 (8mm Diameter)
ADCPH - 9520 CP7/S NOZZLE Ø0.7 (8mm Diameter)
ADCPH - 9530 CP7/S NOZZLE Ø1.0 (8mm Diameter)
ADCPH - 9540 CP7/S NOZZLE Ø1.3 (8mm Diameter)
ADCPH - 9700 CP7/S NOZZLE Ø1.3 (8mm Diameter) MELF
ADCPH - 9550 CP7/S NOZZLE Ø1.8 (16mm Diameter)
ADCPH - 9560 CP7/L NOZZLE Ø2.5 (16mm Diameter)
ADCPH - 9710 CP7/L NOZZLE Ø2.5 (16mm Diameter) MELF
ADCPH - 9570 CP7/L NOZZLE Ø3.7 (16mm Diameter)
ADCPH - 9580 CP7/L NOZZLE Ø5.0 (16mm Diameter) SQUARE


IP1-IP2 NOZZLE
Part Number(OEM) Description
IPH - 3431 IP - SS NOZZLE Ø 1.0
IPH - 3421 IP - S NOZZLE Ø 1.3
IPH - 3411 IP - M NOZZLE Ø 2.5
IPH - 3401 IP - L NOZZLE Ø 4.0
IPH - 4511 IP - LL NOZZLE Ø 7.0 (WITH CAP)
IPH - 4520 IP - LL NOZZLE Ø 10.0 (WITH CAP)
IPH - 4531 IP - LL NOZZLE Ø 15.0 (WITH CAP)
IPH - 4541 IP - LL NOZZLE Ø 20.0 (WITH CAP)
AKPH - 2051 IP2 - SS NOZZLE Ø 1.0 (FIXED)
AKPH - 2031 IP2 - S NOZZLE Ø 1.3 (FIXED)
AKPH - 2041 IP2 - M NOZZLE Ø 2.5 (FIXED)
AKPH - 2061 IP2 - L NOZZLE Ø 4.0 (FIXED)
AIPH - 4030 IP2 -1.3 /21mm DISK
AIPH - 4090 IP2 - 2.5 /33mm DISK
AIPH - 4100 IP2 - 4.0 /71mm DISK
AIPH - 4120 IP 2-10.0 /91mm DISK


IP3 Nozzle
Part Number(OEM) Description
AQNA - 3110/19 IP3 - NOZZLE Ø 0.7 (FIXED) (10mm)
AQNA - 3120/29 IP3 - NOZZLE Ø 1.0 (FIXED) (10mm)
AQNA - 3130/39 IP3 - NOZZLE Ø 1.3 (FIXED) (31 x 31mm)
AQNA - 3140/49 IP3 - NOZZLE Ø 1.8 (FIXED) (31 x 31mm)
AQNA - 3150/59 IP3 - NOZZLE Ø 2.5 (FIXED) (31 x 31mm)
AQNA - 3160/69 IP3 - NOZZLE Ø 3.7 (FIXED) (31 x 31mm)
AQNA - 3170 IP3 - NOZZLE Ø 7.0 (FIXED) (31 x 31mm)
AQNA - 3180 IP3 - NOZZLE Ø 10.0 (FIXED) (52 x 52mm)
AQNA - 3190 IP3 - NOZZLE Ø 15.0 (FIXED) (62 x 62mm)
AQNA - 3200/01 IP3 - NOZZLE Ø 20.0 (FIXED) (102 x 102mm)
AQNA - 3290/95 IP3 - NOZZLE Ø 3.7 (FIXED) (52 x 52mm)
AQNA - 3300/04 IP3 - NOZZLE Ø 7.0 (FIXED) (52 x 52mm)
AQNA - 3310/14 IP3 - NOZZLE Ø 10.0 (FIXED) (62 x 62mm)
AQNA - 3320/24 IP3 - NOZZLE Ø 15.0 (FIXED) (102 x 102mm)
AQNA - 3330/34 IP3 - NOZZLE Ø 6.5 (FIXED) (52 x 52mm)


QP242 INDEX Nozzle
Part Number(OEM) Description
ABHPN-8510 QP-2 INDEX NOZZLE 0.7Φ/12
ABHPN-8520 QP-2 INDEX NOZZLE 1.0Φ/12
ABHPN-8530 QP-2 INDEX NOZZLE 1.3/12
ABHPN-8670 QP-2 INDEX NOZZLE 1.3/38
ABHPN-8540 QP-2 INDEX NOZZLE 1.8Φ/12
ABHPN-8550 QP-2 INDEX NOZZLE 2.5Φ/38
ABHPN-8560 QP-2 INDEX NOZZLE 2.5ΦG/38
ABHPN-8570 QP-2 INDEX NOZZLE 3.75Φ/38
ABHPN-8580 QP-2 INDEX NOZZLE 6.5ΦG/47
ABHPN-8590 QP-2 INDEX NOZZLE 7.0Φ/47F
ABHPN-8600 QP-2 INDEX NOZZLE 10.0Φ/47F
ABHPN-8610 QP-2 INDEX NOZZLE 2.5Φ/38F
ABHPN-8620 QP-2 INDEX NOZZLE 2.5ΦG/38F
ABHPN-8630 QP-2 INDEX NOZZLE 3.75Φ/38F
ABHPN-8640 QP-2 INDEX NOZZLE 6.5ΦG/47F
ABHPN-8650 QP-2 INDEX NOZZLE 7.0Φ/47F
ABHPN-8660 QP-2 INDEX NOZZLE 10.0Φ/47F


QP242 SINGLE Nozzle
Part Number(OEM) Description
ABHPN-6217 QP-2 NOZZLE SINGLE 1.0Φ L=270F
ABHPN-6227 QP-2 NOZZLE SINGLE 1.3Φ L=270F
ABHPN-6237 QP-2 NOZZLE SINGLE 1.8Φ L=270F
ABHPN-6248 QP-2 NOZZLE SINGLE 2.5Φ L=270F
ABHPN-6718 QP-2 NOZZLE SINGLE 2.5GΦ L=270F
ABHPN-6258 QP-2 NOZZLE SINGLE 3.75Φ L=270F
ABHPN-6855 QP-2 NOZZLE SINGLE 5ΦG L=270F
ABHPN-8196 QP-2 NOZZLE SINGLE 5ΦG L=270(back)
ABHPN-6273 QP-2 NOZZLE SINGLE 7Φ L=270F
ABHPN-6895 QP-2 NOZZLE SINGLE 8ΦG L=270F
ABHPN-8216 QP-2 NOZZLE SINGLE 8ΦG L=270(back)
ABHPN-6283 QP-2 NOZZLE SINGLE 10ΦL=270F
ABHPN-6293 QP-2 NOZZLE SINGLE 15Φ L=270F
ABHPN-6805 QP-2 NOZZLE SINGLE 15ΦG L=270F
ABHPN-6705 QP-2 NOZZLE SINGLE 17.5GΦ L=270F
ABHPN-6300 QP-2 NOZZLE SINGLE 20Φ L=270F
ABHPN-6330 QP-2 NOZZLE SINGLE 0.7 Φ L=185F
ABHPN-6750 QP-2 NOZZLE SINGLE 6.5ΦG L=185F
ABHPN-6360 QP-2 NOZZLE SINGLE 7Φ L=185F
ABHPN-6810 QP-2 NOZZLE SINGLE 7Φ L=100F
ABHPN-6770 QP-2 NOZZLE SINGLE 10Φ L=185F
ABHPN-6340 QP-2 NOZZLE SINGLE 10ΦG L=185F
ABHPN-6821 QP-2 NOZZLE SINGLE 10Φ L=100F
ABHPN-6780 QP-2 NOZZLE SINGLE 15Φ L=185F
ABHPN-6831 QP-2 NOZZLE SINGLE 15Φ L=100F
ABHPN-6790 QP-2 NOZZLE SINGLE 20Φ L185F
ABHPN-6840 QP-2 NOZZLE SINGLE 20Φ L100F
ABHPN-6850 QP-2 NOZZLE SINGLE 23ΦG (for BGA)


QP3 Nozzle
Part Number(OEM) Description
ADBPN-8123 QP-3 NOZZLE 1.8Φ
ADBPN-8133 QP-3 NOZZLE 2.5Φ
ADBPN-8193 QP-3 NOZZLE 2.5ΦG
ADBPN-8143 QP-3 NOZZLE 3.75Φ
ADBPN-8023 QP-3 NOZZLE 5Φ
ADBPN-8203 QP-3 NOZZLE 5ΦG
ADBPN-8213 QP-3 NOZZLE 8ΦG
ADBPN-8223 QP-3 NOZZLE 15ΦG
ADBPN-8233 QP-3 NOZZLE 17.5ΦG
ADBPN-8180 QP-3 NOZZLE SINGLE 20Φ L=270
ADBPN-8440 QP-3 NOZZLE SINGLE 20Φ L=200
ADBPN-8340 QP-3 NOZZLE SINGLE 20Φ L=110
ADBPN-8341 QP-3 NOZZLE SINGLE 23ΦG (for BGA)


XP141E nozzle
Part Number(OEM) Description
ADEPN-8070 XP-141 NOZZLE ASS'Y-0.7Φ
ADEPN-8080 XP-141 NOZZLE ASS'Y-1.0Φ
ADEPN-8090 XP-141 NOZZLE ASS'Y-1.3Φ
ADEPN-8100 XP-141 NOZZLE ASS'Y-1.8Φ


XP142E / XP143E Nozzle
Part Number(OEM) Description
ADNPN8210 XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8210 XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8250 XP-142 NOZZLE ASS'Y-1.8Φ
ADNPN8260 XP-142 NOZZLE ASS'Y-2.5Φ
ADNPN8270 XP-142 NOZZLE ASS'Y-3.7Φ
ADNPN8280 XP-142 NOZZLE ASS'Y-5.0Φ


Machine Fuji CP6
P/N: AWPH-9702
P/N: AWPH9510 Des: Nozzle,0.7 (12mm disc)
P/N: AWPH9520 Des: Nozzle,1.0 (12mm disc)
P/N: AWPH9530 Des: Nozzle,1.3 (12mm disc)
P/N: AWPH9540 Des: Nozzle,1.3 (12mm disc) Melf
P/N: AWPH9550 Des: Nozzle,1.8 (12mm disc)
P/N: AWPH9560 Des: Nozzle,2.5 (16mm disc)
P/N: AWPH9570 Des: Nozzle,3.7 (16mm disc)
P/N: AWPH9580 Des: Nozzle,2.5 (20mm disc)
P/N: AWPH9590 Des: Nozzle,2.5 (20mm disc) Melf
P/N: AWPH9600 Des: Nozzle,3.75 (20mm disc)


Machine Fuji CP7/CP8
Des: Nozzle,0.4 (8mm disc)
P/N: Des: Nozzle,0.4 (8mm disc) taper tip
P/N: ADCPH9520 Des: Nozzle,0.7 (8mm disc)
P/N: ADCPH9530 Des: Nozzle,1.0 (8mm disc)
P/N: ADCPH9540 Des: Nozzle,1.3 (8mm disc)
P/N: ADCPH9700 Des: Nozzle,1.3 (8mm disc) Melf
P/N: ADCPH9550 Des: Nozzle,1.8 (16mm disc)
P/N: ADCPH9560 Des: Nozzle,2.5 (16mm disc)
P/N: ADCPH9800 Des: Nozzle,2.5 (16mm disc) Melf
P/N: ADCPH9570 Des: Nozzle,3.75 (16mm disc)


Machine Fuji QP242
P/N: ABHPN-8510 Des: Nozzle,QP-2 INDEX NOZZLE 0.7/12
P/N: ABHPN-8520 Des: Nozzle,QP-2 INDEX NOZZLE 1.0/12
P/N: ABHPN-8530 Des: Nozzle,QP-2 INDEX NOZZLE 1.3/12
P/N: ABHPN-8670 Des: Nozzle,QP-2 INDEX NOZZLE 1.3/38
P/N: ABHPN-8540 Des: Nozzle,QP-2 INDEX NOZZLE 1.8/12
P/N: ABHPN-8550 Des: Nozzle,QP-2 INDEX NOZZLE 2.5/38
P/N: ABHPN-8560 Des: Nozzle,QP-2 INDEX NOZZLE 2.5G/38
P/N: ABHPN-8570 Des: Nozzle,QP-2 INDEX NOZZLE 3.75/38
P/N: ABHPN-8580 Des: Nozzle,QP-2 INDEX NOZZLE 6.5G/47
P/N: ABHPN-8590 Des: Nozzle,QP-2 INDEX NOZZLE 7.0/47
P/N: ABHPN-8600 Des: Nozzle,QP-2 INDEX NOZZLE 10.0/47
P/N: ABHPN-8610 Des: Nozzle,QP-2 INDEX NOZZLE 2.5/38F
P/N: ABHPN-8620 Des: Nozzle,QP-2 INDEX NOZZLE 2.5G/38F
P/N: ABHPN-8630 Des: Nozzle,QP-2 INDEX NOZZLE 3.75/38F
P/N: ABHPN-8640 Des: Nozzle,QP-2 INDEX NOZZLE 6.5G/47F
P/N: ABHPN-8650 Des: Nozzle,QP-2 INDEX NOZZLE 7.0/47F
P/N: ABHPN-8660 Des: Nozzle,QP-2 INDEX NOZZLE 10.0/47F
P/N: ABHPN-6217 Des: Nozzle,QP-2 NOZZLE SINGLE 1.0 L=270F
P/N: ABHPN-6227 Des: Nozzle,QP-2 NOZZLE SINGLE 1.3 L=270F
P/N: ABHPN-6237 Des: Nozzle,QP-2 NOZZLE SINGLE 1.8 L=270F
P/N: ABHPN-6248 Des: Nozzle,QP-2 NOZZLE SINGLE 2.5 L=270F
P/N: ABHPN-6718 Des: Nozzle,QP-2 NOZZLE SINGLE 2.5G L=270F
P/N: ABHPN-6258 Des: Nozzle,QP-2 NOZZLE SINGLE 3.75 L=270F
P/N: ABHPN-6855 Des: Nozzle,QP-2 NOZZLE SINGLE 5G L=270F
P/N: ABHPN-8196 Des: Nozzle,QP-2 NOZZLE SINGLE 5G L=270(back)
P/N: ABHPN-6273 Des: Nozzle,QP-2 NOZZLE SINGLE 7 L=270F
P/N: ABHPN-6895 Des: Nozzle,QP-2 NOZZLE SINGLE 8G L=270F
P/N: ABHPN-8216 Des: Nozzle,QP-2 NOZZLE SINGLE 8G L=270(back)
P/N: ABHPN-6283 Des: Nozzle,QP-2 NOZZLE SINGLE 10L=270F
P/N: ABHPN-6293 Des: Nozzle,QP-2 NOZZLE SINGLE 15 L=270F
P/N: ABHPN-6805 Des: Nozzle,QP-2 NOZZLE SINGLE 15G L=270F
P/N: ABHPN-6705 Des: Nozzle,QP-2 NOZZLE SINGLE 17.5G L=270F
P/N: ABHPN-6300 Des: Nozzle,QP-2 NOZZLE SINGLE 20 L=270F
P/N: ABHPN-6330 Des: Nozzle,QP-2 NOZZLE SINGLE 0.7 L=185F
P/N: ABHPN-6750 Des: Nozzle,QP-2 NOZZLE SINGLE 6.5G L=185F
P/N: ABHPN-6360 Des: Nozzle,QP-2 NOZZLE SINGLE 7 L=185F
P/N: ABHPN-6810 Des: Nozzle,QP-2 NOZZLE SINGLE 7 L=100F
P/N: ABHPN-6770 Des: Nozzle,QP-2 NOZZLE SINGLE 10 L=185F
P/N: ABHPN-6340 Des: Nozzle,QP-2 NOZZLE SINGLE 10G L=185F
P/N: ABHPN-6821 Des: Nozzle,QP-2 NOZZLE SINGLE 10 L=100F
P/N: ABHPN-6780 Des: Nozzle,QP-2 NOZZLE SINGLE 15 L=185F
P/N: ABHPN-6831 Des: Nozzle,QP-2 NOZZLE SINGLE 15 L=100F
P/N: ABHPN-6790 Des: Nozzle,QP-2 NOZZLE SINGLE 20 L185F
P/N: ABHPN-6840 Des: Nozzle,QP-2 NOZZLE SINGLE 20 L100F

If there is no matching models,pls kindly contact us directly!
