Chip theoretical speed of 75,000 CPH

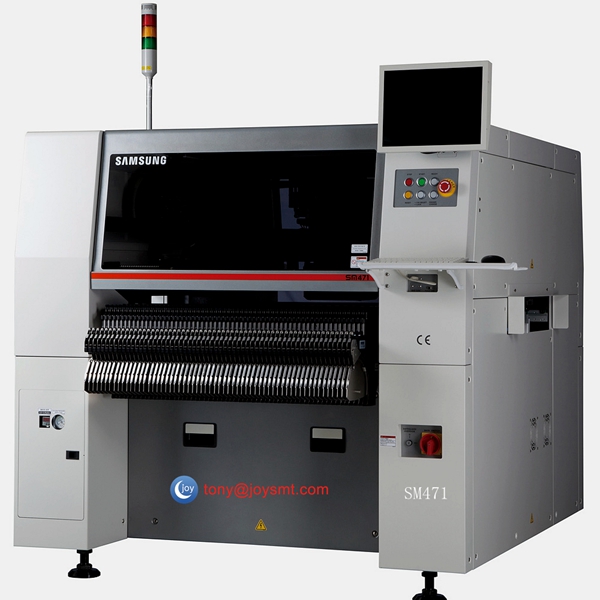

Mounting range 0402Chip ~ □ 14mmICThe Samsung SM471 is a high-speed Chip Mounter equipped with 10 axes for each mount head and dual-boom,
high-performance newer flying camera placement machine that delivers world-class top speeds of 75,000 CPH .
0402Chip ~ 14mm can be basically corresponding, and through the application of high-speed.
High-precision electric feeder, improve the actual productivity and placement quality.
Realizes the Highest Placement Speed Among Chip Shooters of the Same Class by Adopting a New Flying
Head Mechanism Equipped With 10 Spindles.
As a high performance chip shooter that applies two gantries equipped with 10 spindles per head as well
as new flying vision, the SM471 realizes a chip mounting speed of 75,000 CPH, the highest in the world
among chip shooters of the same class. In addition, it is applicable to 0402 chips to the largest □ 14mm ICs
by default and increases actual productivity and placement quality by applying an electrically driven high
speed and high precision feeder. Moreover, it is designed for mixed use with the SM pneumatically driven
feeder to maximize the customers’ operational convenience.
Chip ±50μm㎛(Cpk ≥1.0) The newly upgraded placement accuracy calibration system automatically checks
and corrects the pickup point offset, head offset, C/V offset, etc. to allow reliable part placement.
PCB Loading Time of “ZERO” Maximizes actual productivity by minimizing the PCB transfer time by
adopting a first-in-first-out type shuttle inlet conveyor. In addition, it supports various placement
modes according to production characteristics.
