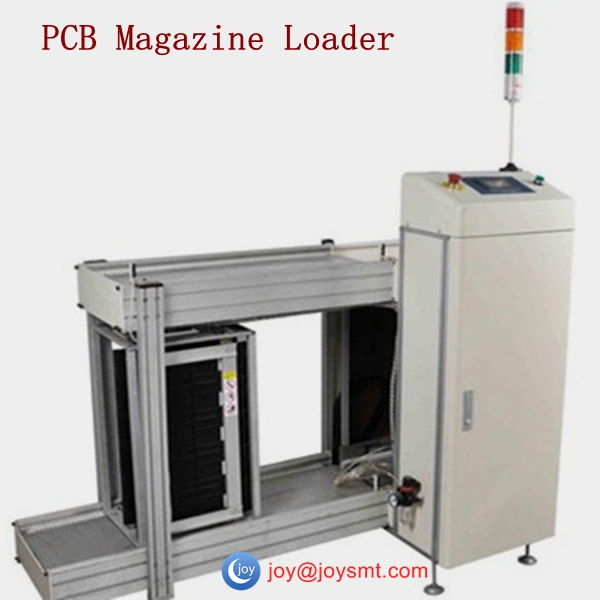

Samsung Magazine Loader
Product features:
1.Special aluminum profile rails and dedicated 1000 bird type plastic chain
2.The lifting system adopts imported ball screw and carbon steel column,
with little noise, little vibration and accurate positioning
3.PLC Programmable controller control
4.With automatic unload board function
5.with automatic counting function, to facilitate production statistics.
6.The built-in search function and security fault detection system, abnormal alarm
7.Using the universal rack, good versatility
8.According to the thickness of the PCB can be set up and down the pace
Man machine friendly interface
- PLC Control
- Customer Design
- Multi Pitch selcection
- Manul and Automatic Selection
PCB size(mm) 80mm*30mm ~ 330mm*250mm
Working high(mm) 920± 30 (std.)
PCB feeding time 8.0 sec / pcs
Power source 220±10V AC 1Phase 60HZ
Machine dimension(L*D*H mm) 627*1100*1650(2130) mm
Machine weight(kg) 180 Kgs
Number of Magazine 5 racks(upper*2 + lower*2+using*1)
Electric Current Capacity(KVA) 0.8
Air supply 4 ~ 6 kg / cm 1.0L/min
