Product description

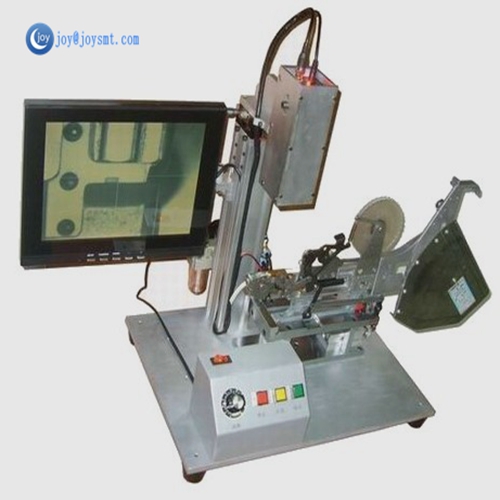

Panasonic CM202 Feeder Calibration jigs
Panasonic CM202 Feeder Calibration jigs
1.With simple structure, simple operation, and optimized function. And the use of high-precision 0 gap guide, to ensure positional stability, greatly improve work efficiency.
2.High accurate inspection. Pick up position, height, all can be measured with accuracy so that can better measure the quality.
3.With 10 inch LED display, circled LED lighting, 50X CCD, tight structure.
4.Simple operation, can simulate the SMT machine, monitor
The pickup position continuously automatically, so can better understand the feeder running quality in order to control the casting rate.
5.Machine Model: Panasonic CM202 Feeder Calibration,You can choose a variety of models such as FUJI CP6, YAMAHA, SANYO; PANASONIC, UNIVERSAL, SONY; JUKI; SAMSUNG;
6.Feature:
1) Accurate X-Y axis adjustment.
2) Direct adjusted axis camera
3) Imbed 220V DC
4) Automatic and manual step function
5）Super bright LED display
6) precise control fixtures feeders;
7)precise 8mm,12mm,16mm and 24 mm feeders control band.
Uses for : FEEDER calibration jig for calibration of various models
Power supply: 220V/24V
Compressed air requirements: 5kg/cm2
Dimensions: L500mm * W 350mm * H550mm
Weight: about 35kg
