Yamaha SMT machine

Location  : Home > Products> SMT Pick & Place Machine> Yamaha SMT machine

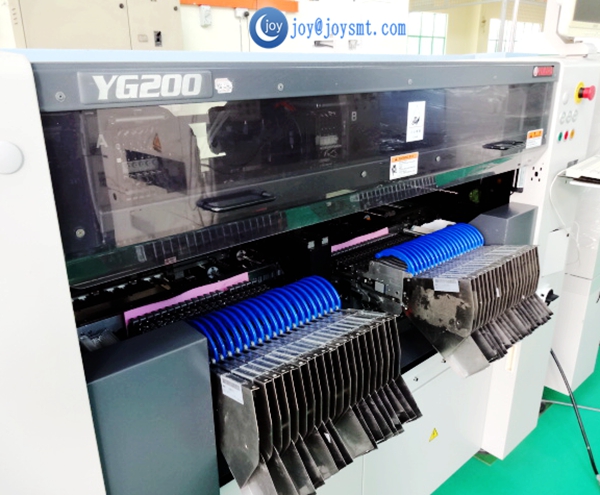

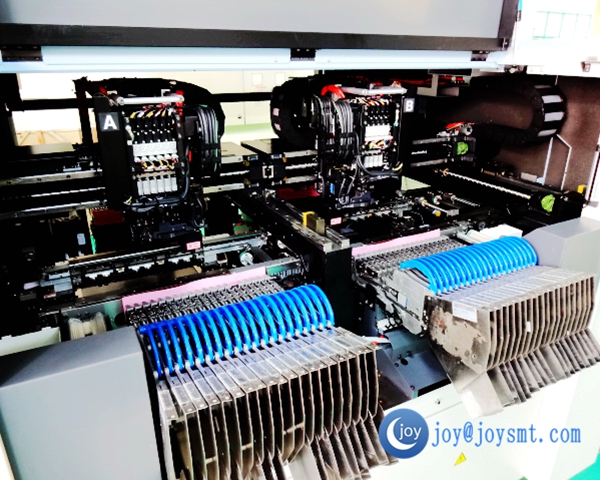

Yamaha YG200 placement machine price

Part No.: YG200 Yamaha pick place machine

Brand: Yamaha

Name/Size: YG200

Specifiction: YG200

Immediate inquiry
< >
Product description YG200 Yamaha pick place machine Specifications

The price of Yamaha YG200 （used） ： USD 38000

Key Specifications/Special Features:

High speed chip shooter YG200 (Model ： KGT-100)
Applicable PCB: L330×W250mm to L50×W50mm
Through-put (Optimum): 45,000CPH（0.08sec/CHIP equivalent)
Mounting accuracy: (Yamaha's standard components)
Absolute accuracy (μ+3σ): +/-0.05mm/CHIP, repeatability（3σ）: +/-0.03mm/CHIP


Applicable components: 0402 (Metric base）to 14*mm components
Height of components which can be mounted: 6.5mm or less
Allowable height on PCB surface before transport 6.5mm or less
Number of component types: 80 types（Max, 8mm tape reel conversion)



Power supply 3-phase AC 200/208/220/240/380/400/416V +/-10%
50/60HzAir supply source 0.55MPa or more, in clean, dry states

External dimension, 950×W1, 408（End of cover)×H1, 450mm （cover top) L1, 950×W1, 608

（End of guide for feeder carriage)×H1, 450mm （cover top)

Weight approx. 2080kg

If you are looking for Yamaha placement or other brand placement machine,Pls contact us directly.
