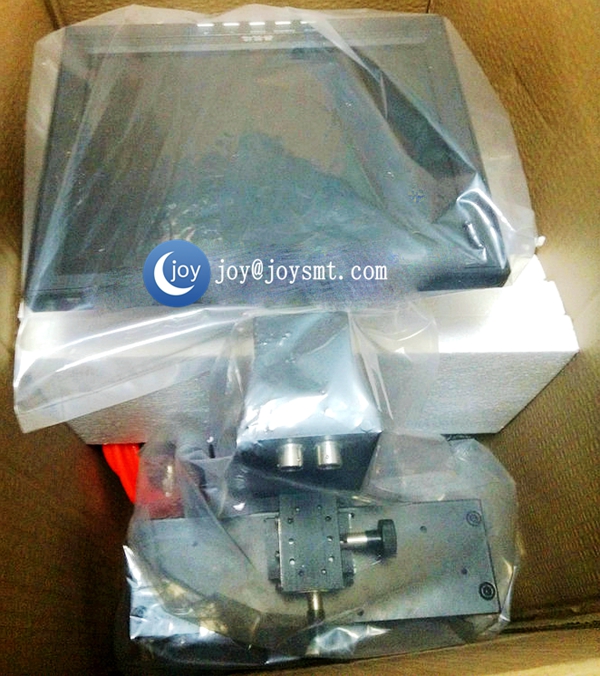

Panasonic CM402 SMT Feeder calibration jig
Joysmt can supply feeder calibrator as below:
SAMSUNG Feeder calibrator (pneumatic)
FUJI XP Feeder Calibrator
FUJI CP6 Feeder Calibrator
Future Feeder Calibrator
SONY Feeder Calibrator (Manual)
FUJI CP6 Feeder calibrator (pneumatic, LCD)
JUKI Feeder calibrator (pneumatic
SAMSUNG Feeder calibrator (pneumatic)
yamaha pneumatic calibrator
SANYO Feeder calibrator (manual, LCD)
YAMAHA Feeder calibrator (pneumatic)
SANYO Feeder Calibrator
Siemens Feeder Calibrator
sanyo electric
Yanaha_Feeder calibrator (pneumatic, liquid crystal)
SONY Feeder calibrator (manual)
Fuji_CP6_Feeder calibrator (pneumatic)
SMT Feeder Calibration Jig .
Custom built to various brands of feeder.
Actual feeding like machine running can be simulated.
Custom built to various models of feeder.
Actual feeding like machine running can be simulated.
Feeder adjustment is possible during simulation.
SMT feeder calibration Jig, used for feeder for:
JUKI,Yamaha,FUJI,Samsung,Siemens,Sanyo,Universal,Panasonic..
With FEEDER CALIBRATION JIG ,you can both check for wheel position in the tape feed direction and function
and position of eject pin. The CCD monitor can display inner cross or quadrate or circinal real line or broken line.
It also can simulate feeding like machine running,and the the running speed is adjustable.
Available for feeders such like Panasonic , Fuji , Juki , Yamaha ,
Samsung , KME , Siemens , Sanyo et
Display CCD Monitor
Correction Inner cross line
Master Jig Depend on feeder model
Operation Adjustable speed control
Air pressure 5 Kg/cm2
Power AC 110V / 220V
Weight 35Kg
Product Information
Product parameters:12-inch LCD monitor with a cross-scale 50 times color CCD camera
The lens part: using professional high-definition magnified 50 times CCD
Front of the lens: equipped with infrared LED light, can be more clearly detected suction position
Slider: X, Y, Z axes are used imported sliders, hardness, easy to wear, adjustable stroke 15MM
Display: 7 inch special LCD display, or black and white display, large and small customers optional
Part of the circuit: solenoid valve used Japan SMC components, buttons used Fuji brand
Base: used 45 # steel imported carved from, and other heat-treated to enhance its hardness, ensure its accuracy
Calibrator base: using imported 16MM thick aluminum processing
Panasonic CM202 CM402 CM602 NPM Nozzle 110 115 KXFX0383A00
Samsung SM320 IC tray
YAMAHA FEEDER CALIBRATION JIG
