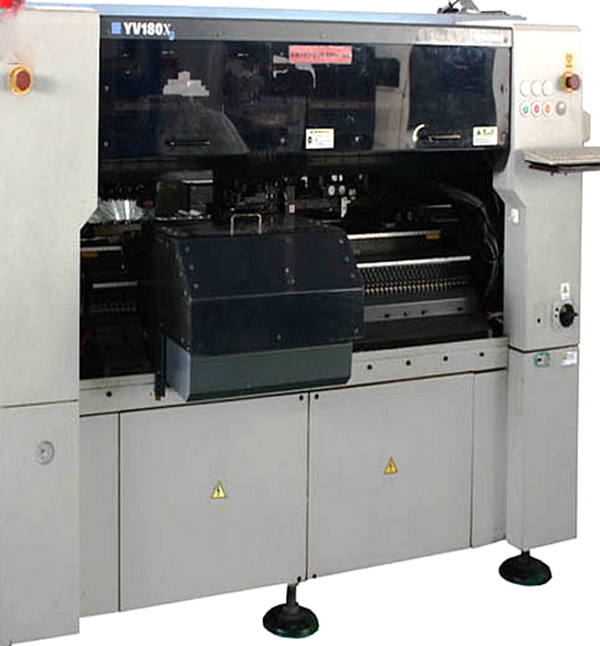

Product description Yamaha YV180 Placement machine Feature and Specification

Brand: yamaha,
Model: yv180x
New and old: 8 into a new.
Machine age: yv180x, 20feeder, 2004

The main working parameters:
Power supply voltage: 380 (V)
Patch speed: 0.11 seconds / CHIP
0.16s / pcs, 0402/0603 / sop, QFP139029 ... Japan YAMAHA Y180X placement machine:
SMD PCB size: L330XW330MM_L50XW50MM
Chip components: 0603 (MM) -31MMX31MM
SMD components can be put 96 kinds (8MM)
Mounter size: L1960XW1630X1450
Mounter weight: 2080KG


Mounter YAMAHA YV180xg
  Substrate inch method L330 × W330mm (Max) / L50 × W50mm (Min)
              L380 × W330mm (Max) / L50 × W50mm (Min)
Accuracy (μ + 3σ): ± 0.05mm / CHIP, ± 0.05mm / QFP Mounting Speed 0.095sec / CHIP 【Optimal Condition】
              1608CHIP: 30,600CPH (0.118 seconds / CHIP conversion) [IPC9850 conditions: M distinction]
Mounting Area 0603 ~ □ 31mm Parts, SOP / SOJ, QFP, Connector, PLCC, CSP / BGA (※ 1)
              ※ □ 25mm ~ □ 31mm parts are available, the shaft can be equipped with spin-off possible.
FNC ヘ ッ ド: Before moving into the substrate above the allowable high さ 4mm or less, carrying parts may be high さ 6.5mm
Standard ヘ ッ ド: move into the substrate above the allowable high さ 6.5mm or less, carrying parts may be high さ 6.5mm
Dimensions inch method L1,960 × W1,630 × H2,000mm
The body mass is about 2,080kg

JOY TECHNOLOGY CAN PROVIDE YAMAHA YV180|YV180X parts as follows:
YV180X SMT Parts list:
Part No.     Part Name      Q'ty Remarks   Date   Revised No.
KM5-M7101-00X HOUSING HEAD
KM5-M7101-10X HOUSING HEAD
KM1-M7160-00X SENSOR HEAD 1
KM5-M7193-00X SENSOR, HEAD ASSY
KM1-M7161-00X SENSOR
KM5-M7174-01X EJECTOR
KM5-M7174-02X EJECTOR, RESIN
KM5-M7176-00X BRACKET SENSOR
KM1-M7165-00X SENSOR HEAD
KM9-M7165-00X SENSOR, HEAD
KJ2-M7158-00X SENSOR HEAD


KM9-M7158-00X SENSOR, HEAD
KM5-M7188-00X VALVE
KM5-M7188-01X VALVE, RESIN
KM5-M7122-00X CYLINDER
KM1-M7152-00X WASHER 1 THURUST
KM5-M7189-00X SPACER VALVE
KG2-M7181-00X PACKING
90990-22J001 PACKING
KM1-M7153-00X SPACER
KM5-M7123-00X O-RING
90200-10J040 O-RING
KM1-M7186-00X O-RING
90990-17J007 O-RING


KG2-M7110-00X SPLINE HEAD ASSY
KG2-M7115-00X CP PINION
KG2-M7116-00X CP PINION
KG2-M7117-00X TORSION COIL SPRING
KM5-M7118-00X STOPPER
KG2-M7119-00X BEARING
90933-02J604 BEARING
KM5-M7121-00X SPRING RETURN
KM5-M7124-00X HOLDER NOZZLE
K38-M7161-30X STEEL BALL
99009-07800 CIRCLIP
99009-03600 CIRCLIP



KM5-M7125-00X LEAF SPRING
KM5-M7126-00X SPRING BUFFING
KM5-M7169-00X SCREW
KG7-M7170-00X WASHER
90990-28J002 WASHER PLAIN
KM6-M7191-10X TYPE 1.NOZZLE
KG2-M7191-20X TYPE 2.NOZZLE
KG2-M7191-30X TYPE 3.NOZZLE
KM5-M7191-40X TYPE 4.NOZZLE
KM5-M7191-50X TYPE 5.NOZZLE
KM-05 MUFFLER
TL10-01 JOINT
TL8-01 JOINT
99480-04010 PIN PARALLEL
KM1-M4592-10X VACUME SENSOR BOARD ASSY
98704-04008 SCREW FLAT HEAD





KW8-M2251-00X FRAME, T-AXIS
KW8-M2252-00X PLATE
KW8-M2254-00X PLATE
KW8-M2255-00X PLATE
KW8-M2257-00X HOLDER
KW8-M2259-00X BRACKET MOTOR
KW8-M2264-00X BRACKET 1 GUIDE
KW8-M2265-00X BRACKET 2 GUIDE
KW8-M2274-00X PLATE TENSION
KW8-M2275-00X GUIDE 1 T-AXIS



KV7-M9266-00X GUIDE 1 LWL9 R80B
KW8-M2279-00X DOG ORIGIN
KG2-M2282-00X DAMPER
KW8-M2283-00X HOOK
KG2-M2284-00X SPG.MAIN
KM0-M655A-00X SENSOR 1-1,ASSY
KW8-M8507-00X DUCT
KL0-M8506-00X CYLINDER
TSH4-M5 JOINT



KB0-M2236-00X PLATE
KB0-M223E-00X COLLAR
KB0-M223F-00X COLLAR
KC0-M1751-00X PULLEY
KB0-M2255-01X PULLEY
KB2-M2254-00X PULLEY
KB0-M2256-00X BELT 1 1 B150S3M225
KB0-M2257-00X BELT 2 1 B150S3M ,2800mm
KB0-M2274-00X BEARING
KV5-M7810-00X SPACER
KM5-M7158-00X POST TENTION
KW8-M2291-00X BRACKET, SENSOR
KW8-M2292-00X SHAFT,PULLEY
KW8-M2293-00X SHAFT,PULLEY
KW8-M2294-00X BELT BLOCK
KB1-M2274-00X BRG.
KW8-M2295-00X HEAD, CYLINDER
KW8-M2296-00X SHAFT
KB0-M2616-00X COLLAR
90K55-4W034M AC SERVO MOTOR
KW8-M2256-00X PLATE
KW8-M2261-00X BRACKET,ARM



KW8-M2277-00X GUIDE 3 T-AXIS
KG7-M9190-00X HANDLE
KW8-M2268-00X BRACKET,BELT
KW8-M2269-00X PLATE, BELT
KW8-M2271-00X BRKT.1,SHAFT
KW8-M2272-00X BRKT.2,SHAFT
KW8-M2280-00X BELT
KW8-M2273-00X STOPPER
KH2-M9105-10X PULLEY MOTOR 2 3GTP30
KV7-M9191-00X SHAFT
KV7-M9196-01X SHAFT
KV7-M9193-00X LEVER,CLAMP
KW8-M2262-10X ARM
KW8-M2263-00X ARM
KW8-M2289-00X NAIL,PLATE
KW8-M2290-00X NAIL,PLATE
KW8-M2286-00X PLATE,TENSION
KG2-M2285-00X SPG.NAIL
K98-M9237-00X BALL SLIDE 3 BSR1530
KM0-M655E-20X SENSOR,1-2,ASSY
KG2-M2284-00X SPG.MAIN
KW8-M2287-00X DOG
KW8-M2288-00X GUIDE
KM0-M655E-30X SENSOR,1-2,ASSY



KW8-M2251-00X FRAME, T-AXIS
KW8-M2252-00X PLATE
KW8-M2254-00X PLATE
KW8-M2255-00X PLATE
KW8-M2257-00X HOLDER
KW8-M2259-00X BRACKET MOTOR
KW8-M2264-00X BRACKET 1 GUIDE
KW8-M2265-00X BRACKET 2 GUIDE
KW8-M2274-00X PLATE TENSION
KW8-M2275-00X GUIDE 1 T-AXIS
KV7-M9266-00X GUIDE 1 LWL9 R80B
KW8-M2279-00X DOG ORIGIN
KG2-M2282-00X DAMPER
KW8-M2283-00X HOOK
KG2-M2284-00X SPG.MAIN
KM0-M655A-00X SENSOR 1-1,ASSY
KW8-M8507-00X DUCT
KL0-M8506-00X CYLINDER 1
