Product description

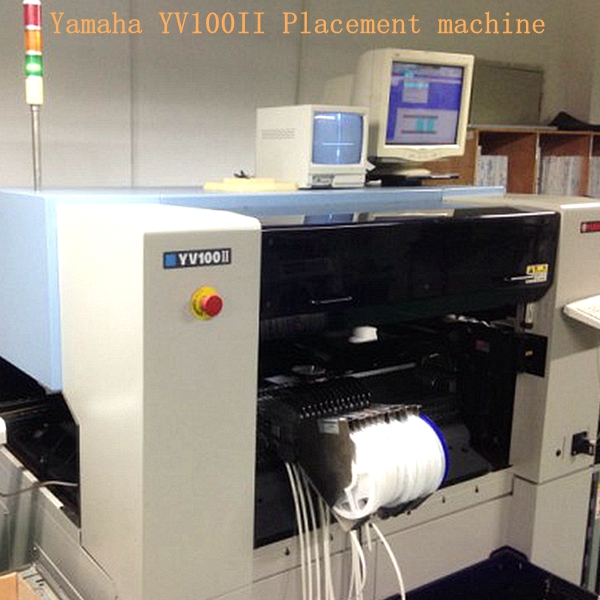

Yamaha YV100II Placement machine specification
Chip theoretical speed 0.25sec / chip
Mounting range 1005 ~ qfp'sqp 'soj'plcc (25mm) bga (0.4p)
Positioning accuracy of plus or minus 0.08mm
PCB size l460 * w250 (max) / l50 * w50 (min)
Equipment size l1650 * w1350 * h1810
Maximum power 4KVA
Equipment weight 1300kg
Used Yamaha YV100II placement machine roughly 98 years or so equipment,
mechanical structure is simple, a casting frame made to ensure durability and stability,
the circuit control department is not complicated, easy maintenance. DOS operating system,
the menu is relatively simple, easy to operate, a working head, 8 suction nozzle,
the size of the material can be posted, you can install a precision camera to
improve placement accuracy. The theoretical speed of 14400 points per hour,
the actual production capacity of about 8000, suitable for small batch production.
Yamaha YV100II parameters
1. Based on the reliability of the basic structure of the high-speed machine
2. Protection components of the mount
3.0.25 seconds / CHIP high-speed mounting
4 can be mounted 0.5 feet spacing 32mm QFP
5. High-speed image processing
6.2 cameras reduce production time
7. Newly designed high rigidity frame
8. Increase the speed of the shaft
9. Can handle a variety of components
10. The most suitable for computer SIMM production with 8 wired head
Substrate size: L600 * W400 (Max) / L50 * W50 (Min)
Substrate thickness 0.4-3.0
Substrate conveying direction right - left
Mounting accuracy ± 0.1mm / CHIP ± 0.08 / QFP
Mounting Speed 0.25 sec / CHIP 1.7 sec / QFP
Original Type Ribbon original: 100 (MAX, 8MM with conversion)
Tray Original: 80 kinds (TMAX, YTF use)
The original form of supply 8-56mm broadband, rod, bulk, tray
Placement Original 1005 ~ QFP'SQP'SOJ'PLCC (25mm) BGA (0.4p)
Power three-phase AC220 / 208/230/240/380/400 / 416V ± 10%, 50 / 60HZ
Power 4KVA
Pressure above 0.55MPA, 350MIN
Dimensions L1650 * W1350 * H1810
Weight 1300KG
Patch speed 12000 (grain / hour)
Weight 1300 (kg)
