Yamaha YG100 specification and price
The price range for used placement machine is abt USD30000-USD50000（Only for reference).

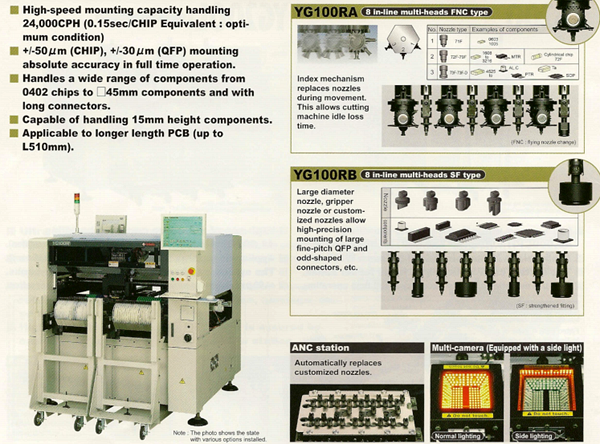

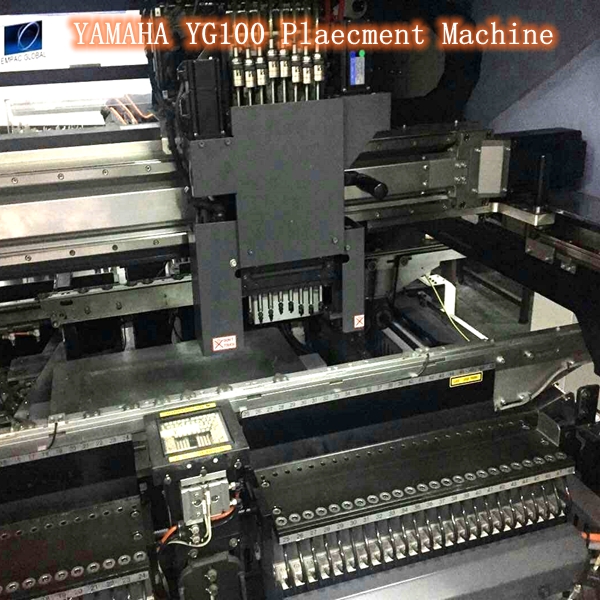

for high-speed general purpose machines,it can simultaneously mount different types of special-shaped
components.Using YAMAHA's newly designed head structure,all nozzles up and down control are controlled by
the electric motor, The machine mounting accuracy is greatly improved compared to the previous memory.

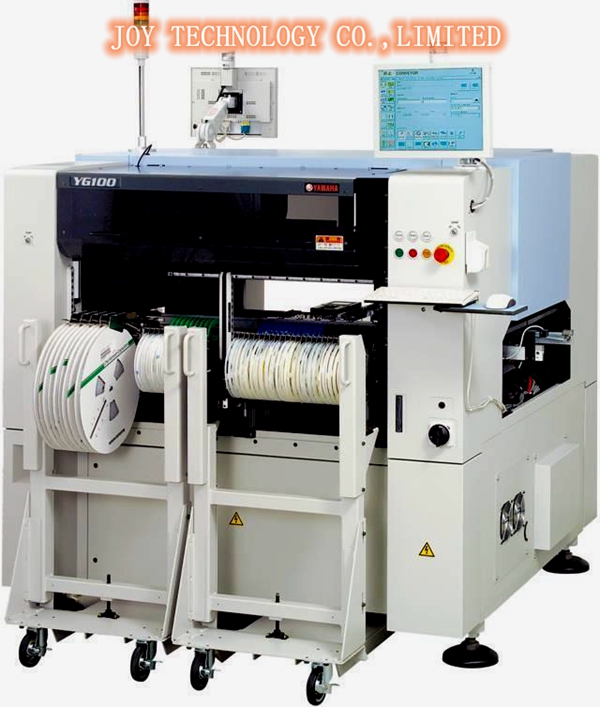

YAMAHA YG100 high-speed placement chip, high-precision, high-speed modular placement machine,
high rigidity dual drive structure,High-performance servo system, high-resolution digital multi-vision camera,
multiple precision correction system.
Automatically adjust the transmission width, automatically adjust the height of the mounting surface,
belonging to the YG series classic models.The theory is 25,000 points per hour.
The actual production speed is about 15,000 points per hour.

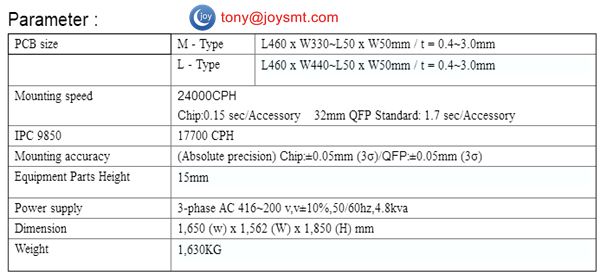

1) Board size: M-Type: L460xW330 ~ L50xW50mm/t = 0.4 ~ 3.0mmL-Type:
L460xW440 ~ L50xW50mm/t = 0.4 ~ 3.0mm * sATS use: L460xW440 ~ L50xW50mm
2) Mounting speed: Chip: 0.15 seconds / accessories / 32mm QFP standard: 1.70 seconds / accessories 3)
IPC9850 conditions: 17700CPH, Chip: 0.20 seconds / accessories
4) Mounting accuracy: Chip: ± 0.05mm (3σ) / QFP: ± 0.05mm (3σ)6) Supported components: 0402 to SOP, SOJ, 84-pin PLCC, 0.5mm pitch QFPBGA,
CSP□31mm, 100mm connector, IC socket.
7) Equipment Parts Height: 15mm8) Part identification methods: multi-angle illumination digital multi-camera system (34 pixels),
multi-angle lighting good vision system (79 pixels).
9) Operation Software: YGOS (FullLine Mode, OnLineHelp, rich accessories and internal organs)10) Optimization Software: Basic Services (Head and Feeder Numbers,
Automatically Specified by the Installer)
13) Safety device: Head collision protection device in two modes: SoftLimit and HardLimit.
The CoverInterlock switch is used for head and collision prevention.
14) Power supply: 3-phase AC 416~200V, V± 10%, 50/60Hz, 4.8kVA
0402 (mm series name) - □ 55mm element) SOP/SOJ) QFP) connector) PLCC) CSP/BGA)
long connector (Note 3) (Note 4) (Note 5)
Target component height is 15mm or less (Note 6)L1,650×W1,615 (whole rail end of replacement trolley)×H1,470mm (above cover)
Absolute accuracy (μ+3σ):+/-0.05mm /CHIP, +/-0.05mm /QFP
Repeatability(3σ):+/-0.03mm /CHIP, +/-0.03mm /QFP
Applicable components
0402(Metric base) to □45mm components, SOP/SOJ, QFP,connector, PLCC, CSP/BGA,
Long connector (Note 3)(Note 4)(Note 5)
Height of components which can be mounted : 15mm or less(Note 6)L1,650xW1,562(End of cover)xH1,470mm(cover top)L1,650xW1,
615(End of guide for feeder carriage)xH1,470mm(cover top)
WeightApprox. 1,630kg(Main unit only)
JOY TECHNOLOGY CO.,LIMITED CAN SUPPLY YAMAHA YG100 SPARE PARTS,
If you have any demands ,pls contact us directly.
