Yamaha YS24 Specification And Price(
Compact Super-High-Speed Modular)
The price range for used ys24 placement machine is
abt USD60000-USD98000（Only for reference).

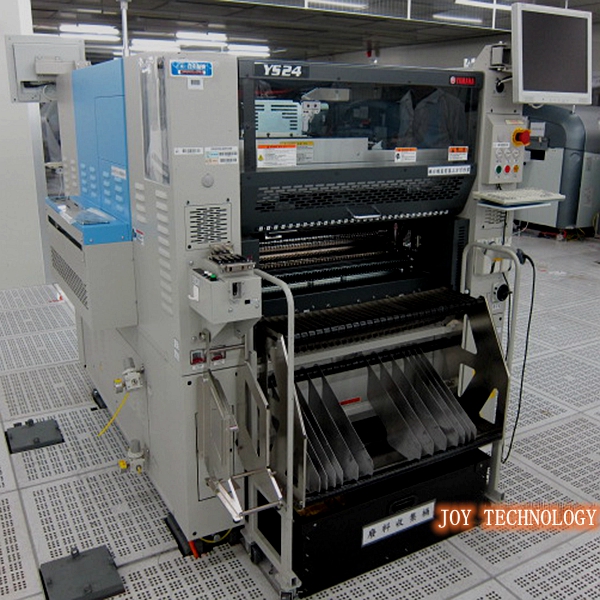

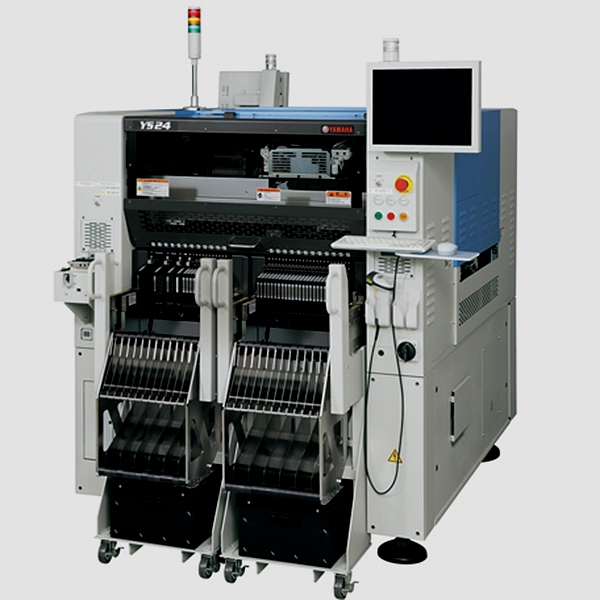

Yamaha YS24 Series Mounter is divided into Yamaha YS24 and
Yamaha YS24X models,
Yamaha YS24/YS24X supports L700×W460mm ultra large substrates
Yamaha's unique dual placement table, dual rail system.
YS24 production per unit area of 340,000 CPH / square meter.
72,000CPH (0.05sec/CHIP)
Excellent mounting capability
Newly developed "Dual Stage Conveyor" 34kCPH/㎡
Area-productivity, top class in the world
L700 x W460mm Super large PCB applicable
YAMAHA Dual Lane System applicable
120 Max feeder capacity
0402 to 32 x 32mm
Components applicable

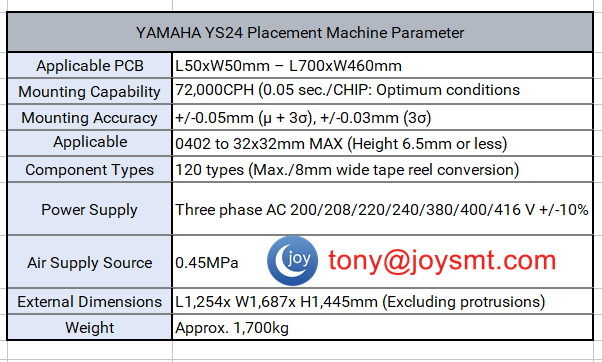

Yamaha YS24X parameters:
Top Mounting Capacity in General Mounter 54,000 CPH (0.067 Seconds/CHIP)
The maximum number of feeders that can be installed (8mm tape trays) is 96
(62 with sATSII)
Supports automatic pallet changer (30 kinds of JEDEC pallets) sATSII
Supportable components, height 0402~45×100mm, H15mm
Dimensions: L1,254×W1,687×H1,445mm; host only,
L1,544 (lengthened conveyor end)×W2,020×H1,545mm
Weight: about 1,700kg (host only)
About 1,890kg
