Product description
Main benefits
Highest space productivity 20k cph per square meter
120 Feeder positions
Lowest cost of ownership
Standard large board size of up to 575 x 460mm
Compact size of 1.25 x 1.44 meter High mount reliability with new side view and scanning camera Easy to use.
Specifications
Applicable PCB: L510x~W460mm to L50x~W50mm
Through-put (Optimum): 36,000CPH（0.1sec/CHIP Equivalent）
Mounting accuracy (Yamaha's standard components): Absolute accuracy (μ+3σ) : +/-0.05mm/CHIP
Repeatability(3σ) : +/-0.03mm/CHIP
Applicable components: 0402(Metric base) to □32*mm components*1 *Correspondence since Jan., 2010
Number of component types: 120 types(Max, 8mm tape reel conversion)
Power supply: 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source: 0.45MPa or more, in clean, dry states
External dimension*2: L1,254~W1,440~H1,455mm(cover top)
L1,464(End of extension conveyor)xW2,018(End of guide for feeder carriage)xH1,455mm(cover top)
Weight Approx.: 1,250kg

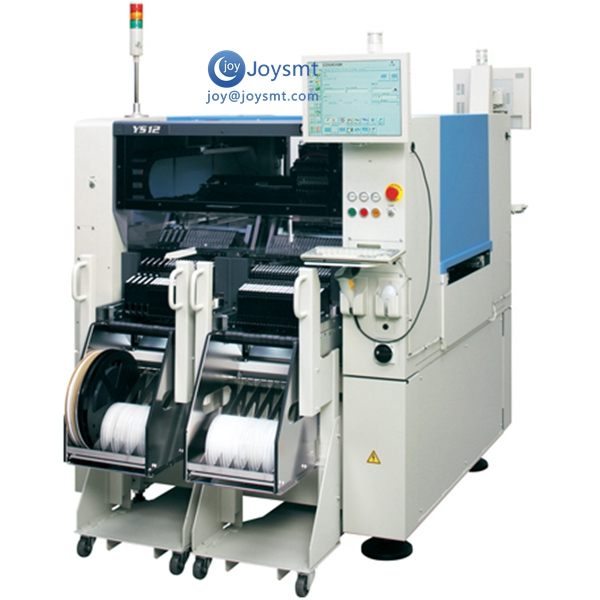

The YS12 pick and place machine is the most flexible, space-efficient machine on the market,
offering unmatched capability. It is the solution for customers requiring many feeding positions,
large board sizes and significant output.
A newly developed -ultra thin- feeder platform with an electrical intelligent feeder allows the
YS12 to hold up to 120 feeding positions enabling high flexibility for large mix and minimum
changeover environments with high reliable pick up rates. The ability of handling a large variety
of products with a very wide range of components and product complexity, the YS12 is a future
proof capable machine ensuring that your production capabilities will keep ahead of the rapid
evolution of electronic components and packaging solutions.
With a space productivity of 20k components per hour (cph) per square meter, the YS12 is the most
productive chip shooter on the market. With its length of merely 1.25 meters, its 10 inline heads,
combined with a new recognition system, the YS12 achieves a speed of 36k cph.
Performance is guaranteed with the advanced optic scanning camera and integrated side-view camera.
Simultaneous measuring of the X- and Y-sides of the component provide the most optimal accuracy
and mount reliability.
