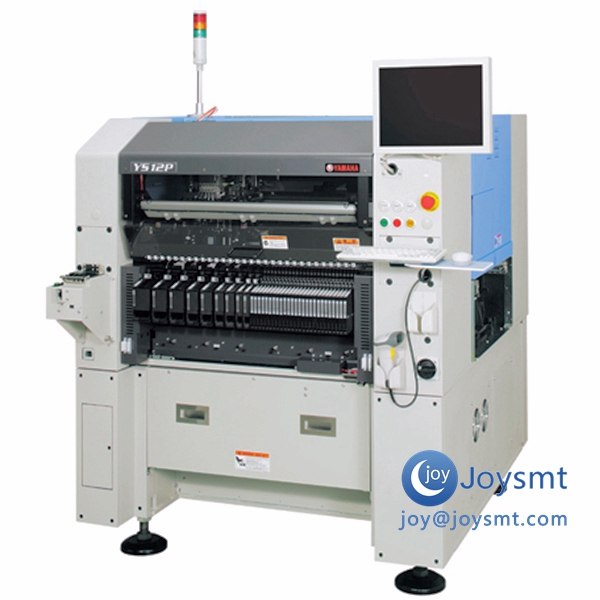

Compact Economy Modular Yamaha YS12P SMT machine

Part No.: YS12P

Brand: Yamaha

Name/Size: Yamaha YS12P

Specifiction: Yamaha YS12P

Immediate inquiry
< >
Product description Compact Economy Modular Yamaha YS12P SMT machine

High speed mounting capacity handling 24,000CPH (0.15sec/CHIP equivalent) High flexibility for components:

 0402 to 32 x 32mm components, the height up to 6.5mm. Applicable to large size PCB, L510mm x W460mm.

 Handles tray package components by Manual Tray(MT) Built-in Tape cutter.


SPECIFICATIONS:
Mounting accuracy: Absolute accuracy(μ+3σ) +/-0.05mm/CHIP
Applicable PCB: L510 x W460mm to L50mm x W50mm
Mounting accuracy: Absolute accuracy(μ+3σ) +/-0.05mm/CHIP
Mounting tact: 24,000CPH(under our optimum condition)
Component supply: Tape reel, tray
Number of component types: Tape package components: 59 types(Max/8mm tape reel conversion) Tray

package conversion: 2 types(Max/JEDEC tray conversion)
Applicable components: 0402 to 32 x 32mm MAX, including ball type electrode components
Applicable height: 6.5mm
Power supply: 3-Phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source: 0.45MPa
External dimension: L1,254xW1,440xH1,445mm (not include the projection)
Weight Approx:. 1,250kg
