Product description

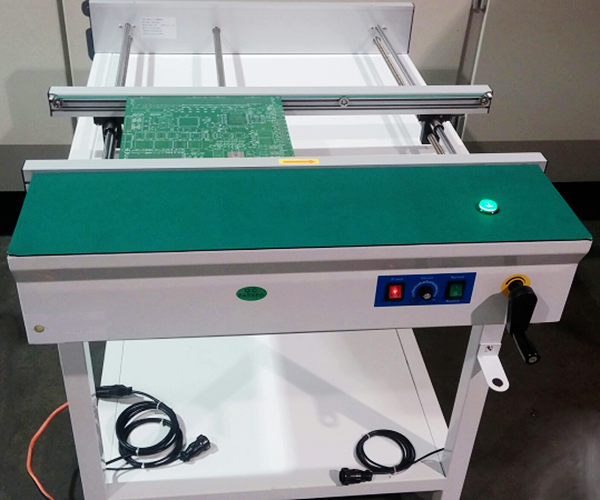

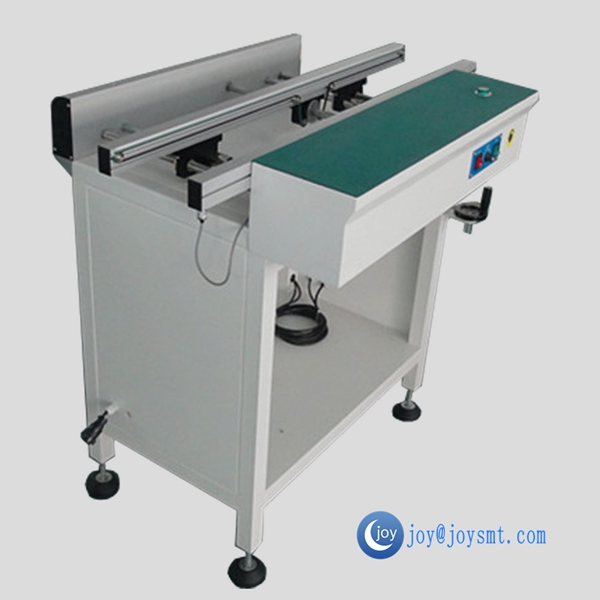

SMT conveyor machine
Handles PCB Size from 1.95 inches to 27inches or More. (50mm - 685mm)
Custom Sizes Available
Quality Well Made Product
Sturdy Construction
Pass Through Mode or Inspect Mode
Adjustable Speed Control Conveyor
Flow: Left to Right
SMEMA Compatible
Smema Cable Included
Anti-Static Belts
Special Aluminum Guide Rail for smooth PCB movement
Includes parts warranty!
Product feature
Gantry with iron square plus sheet metal bending welded together, the surface spray computer white electrostatic paint.
Table with sheet metal bending welding, table width 200MM, anti-static adhesive sheet on the surface.
Support feet with special M12 rubber feet cup, shock, not easy to shift.
The use of special transmission rail aluminum groove design to prevent the card board.
Adjust the width of the hand, the handle is fixed in the form of track.
Transmission motor using Taiwan's imports of electronic speed motor, with a dedicated combination governor, stable performance.
The control system adopts self-developed special industrial board control.
Product parameter
Description: This equipment is equivalent to the operator's test bench between SMD machines or circuit board assembly equipment
Belt type: round belt or flat belt optional
Delivery speed: 0.5-20 m / min or customer specified
Power: AC 110V or 220V; single phase
Power: up to 100 volts
SMEMA interface: Compatible signal connector
Lighting system: T5 series of energy-saving lamps plus square lighthouse or customer specified
Background board: fixed, mobile or customer specified
Anti-static buckle: standard
Anti-static seat: standard
Material: 200MM wide material or customer specified
Cooling device: 4 inch cooling fan or customer specified
Dust-proof device: transparent dust cover or customer specified
Transmission motor: brand independent matching
Control system: PLC control
Other configurations: increase the configuration according to customer specified requirements
Model Dimensions (L * W * H mm) Board Size (mm) Weight (kg)
IC-L-100-NC 1000 * 665 * 900 50 * 50-445 * 330 80
IC-LL-100-NC 1000 * 735 * 900 50 * 50-445 * 400 85
