SMT Conveyor machine

Location  : Home > Products> SMT Peripheral Equipment> SMT Conveyor machine

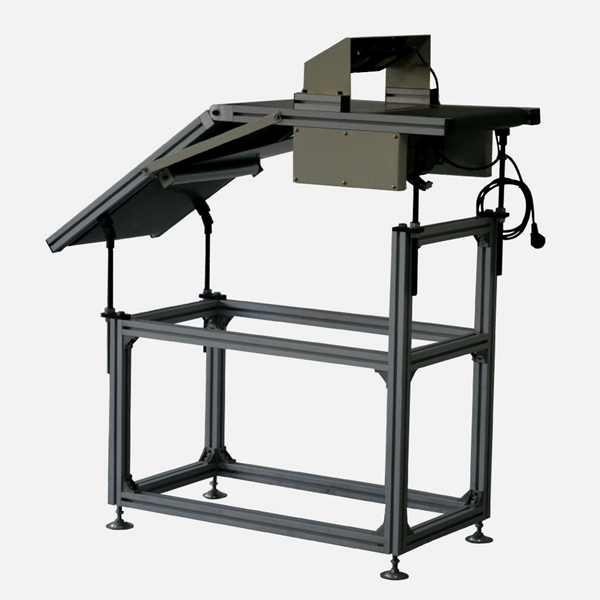

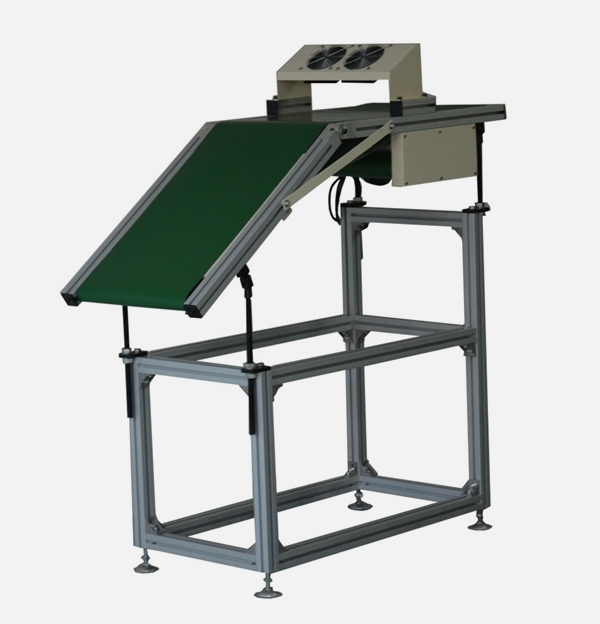

Wave soldering Out of board conveyor machine

Part No.: Out of board conveyor machine

Brand: joysmt

Name/Size: conveyor machine

Specifiction: conveyor machine

Immediate inquiry
< >
Product description Wave soldering Out of board conveyor machine

Dimensions :
(L × W × H) 1200 × 490 × 1200 (mm) can be customized
Belt width 400 (mm) (optional)
PCB transfer direction from left to right or from right to left
Transmission speed 0 ~ 4000 (mm) / Min
Transport motor 1P AC220V 15W
Power supply 1P AC220V 50 / 60HZ
Transport height 750 ~ 1200mm adjustable
Conveyor belt material Antistatic belt
Conveyor belt length 400 + 800 (mm)
Weight 48Kg

Product feature
The overall support is made of aluminum alloy material, beautiful appearance, durable;
Wave soldering board plate for the automatic wave soldering machine and the production line connected to use;

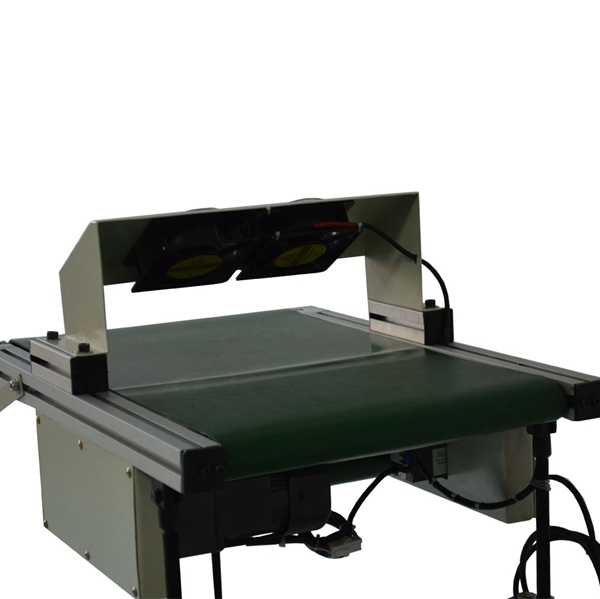

The top of the installation of heat sink fan design, to minimize the PCB and component temperature;
Conveyor belt for the hole with green belt and non - slip belt design structure two;
Transport belt speed adjustable, track angle, height can be adjusted.


According to different technical and specifications,Joysmt can supply customized service.
