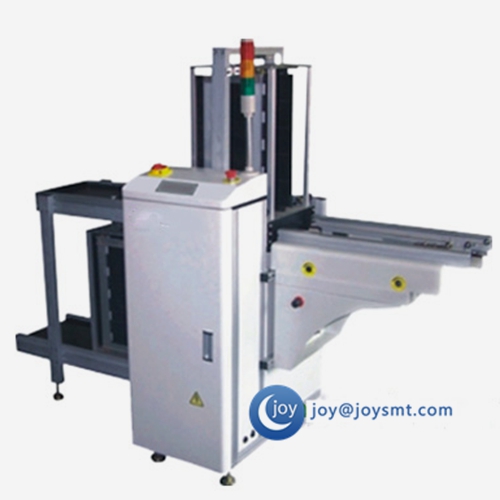

SMT PCB unloader
PCB unloader Feature：
Aluminum Alloy structure to keep machine stable and steady.
PLC + Mirco-computer control to ensure the running stable & reliable.
Touchscreen displaying ,Has the breakdown automatic diagnosis function,
The man-machine conversation is convenienty.
Multi-kinds of light and sound alarm function.
The pace of up or down for magazines can be set by PCB thickness.
Two Different size of magazines can be using together.
Humanization design to make no damage when PCB feeding so that it can raise the productivity.
1.To fulfill the automation of SMT craft, which can,save labors
2.PLC controller ensures the stability
3.Rising Height of the PCB board is adjustable
4.The frame made of superior Aiuminum material,strong and durable.
5.High precise SMT handspike makes the in-putting without mistake
6.The function of automatic counting, in-putting and alarming
7.Models in Customized size are acceptable.
Specification
1. Microcomputer control, stable and reliable.
2. LCD screen display, menu interface, the man-machine dialogue is convenient.
3. Many sound-light alarm function.
4. So can use standard feeder, strong commonality.
5. According to the thickness of the PCB so set feeder lifting step distance.
6. Under so feeder built-in push board institutions, avoid buy separate push trigger.
7. Automatic counting functions, facilitate production statistics.
8. Signal communication interface, and other machines online travel.
Structured design
Easy to operate touch-type LED control interface
Up and down pneumatic clamp to ensure that the location of the box accurate
Special gas design to ensure that will not break the PCB board
Wear-resistant cable, long service life
It is used for the PCB loading and unloading in the SMT or THT production line to fulfill
the automation.PCB unloader is at the end of the production line. Such as, after the
automatic solder printer, pick and place machine, reflow oven, wave soldering machine,
AI machine etc.
