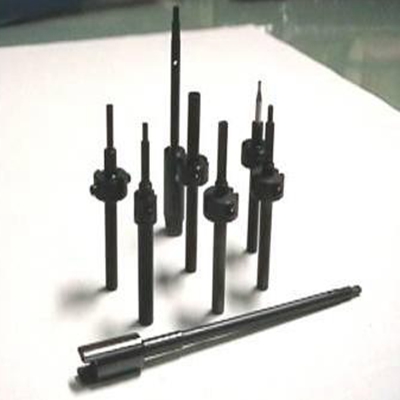

SMT nozzle selection should follow what kind of principle?
When the installation smt nozzle should follow some principle, for the universal SMT nozzle how to choose.
There are several options for the component database to be installed.
Select more than we need to be analyzed to determine the actual situation, then we use the default nozzle is good or give more nozzles, of course, only gives a benefit, that is the head of the nozzle is easy arrange, it is easy when the optimizer, but everything has its pros and cons, in this regard, there is necessarily good in some other respects there is a downside, which is like saying we are doing the math proofs when the results of the more constraints given in the title is the last to get more precise. in the end it is not the case, it is estimated that no one can give an accurate answer, because the choice of nozzle affected many aspects.
SMT nozzle selection factors used to consider the size of the object, shape and so on.
The machine default and artificial choice, the former is not the latter flexible, and no the latter closer to the actual machine only according to the size of the parts to select the nozzle.For example, some parts are very light we can choose when the small , but the machine is not, it sets a bit larger than the nozzle, often does not agree with the default and the machine element appears as if the hole in the middle or even more strip like to purchase this material for non-standard Custom model nozzle.
SMT nozzle in the selection of the time there will be optimization of this factor exists, according to the selected NOZZLE reasonable arrangement of material level, this is very important.We can set in the component databese in order to reduce the optimization cycle.If the material level is not arranged Well, it will report the X-axis limit error, we should try to put a small material on the Track1, this should be considered should not be reported X-axis beyond the reduce error.
In short, the models of the SMT nozzle in the selection should be based on the actual material by the technicial to determine the judge.
