Panasonic smt machine

Location  : Home > Products> SMT Pick & Place Machine> Panasonic smt machine

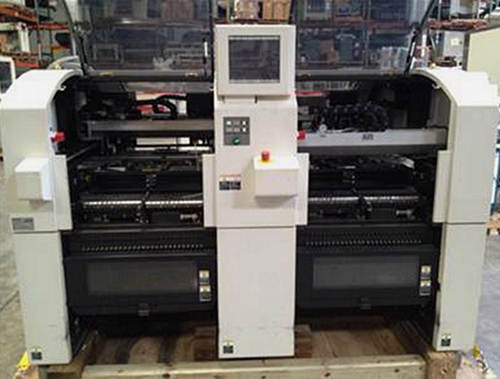

Panasonic CM202-DS CM201-DS

Part No.: Panasonic CM202-DS CM201-DS

Brand: Panasonic

Name/Size: Panasonic CM202-DS CM201-DS

Specifiction: CM202-DS CM201-DS

Immediate inquiry
< >
Product description Panasonic CM202-DS CM201-DS feature and parameter
Panasonic CM202-DS CM201-DS feature and parameter
Sector      Specification(CM202-DS)      Specification(CM201-DS)
ModelNo.     KXF-E24C                              KXF-E14C
TactTime    0.088sec/chip                     0.176sec/chip
B'd change 시간 3.0 sec
Centering 방식 Upward Vision
기판 Size(L x W) MAX.460 x 360mm,MIN.50 x 50mm
장착각도 0°~ 359° θ ±1°                장착정도 ±0.05mm/chip
FeederStation 104 stations(Double Feeder) 52 stations(Double Feeder)
대응부품 0603 ~ □24mm x 6t
Feeder종류 8~72mm Tape Feeder/Bulk Feeder/Vibration feeder/
Tray Feeder
Conv.Transfer Right→Left(Left→Right:Op.)FrontFix(RearFix :Op.)
Power   AC200V 3PH,50/60Hz, 2.5kVA  AC200V 3PH,50/60Hz, 1.5kVA
Air 0.49MPa 400L/min 0.49MPa 200L/min

Dimension(LxWxH)mm

2350 x 1950 x 1430

1390 x 1950 x 1430

Weight(kg) 2620 1460
