Product Specifications:
1. External dimensions: Customized
2. number of columns available: 3 columns
3. Each column can be stored PCB plate: 100-200PCS
4. guide groove: Vertically insert
A. groove depth: 5mm
B. Width: 5mm
C. slot length: 630mm
D: layer distance: 10mm
5. Surface resistance: 106-109Ω
6. Main Material: 201 stainless steel pipe and PP conductive plate
7. Material Specifications: 25 * 25,25 * 13, O 22
8. Bearing weight: 150KG
9. each bearing weight: 50KG
10. Casters Dimensions: 4 inches of rubber conductive wheels
11. anti-static measures: conductive castors and conductive chain
12. Tube Thickness: 0.9mm ± 8c
13.PP Thickness: 10mm
14. average length of each column can be put: 280mm ± 10mm
15. flapper practice: injection
16. Affordable temperature: 60 ℃

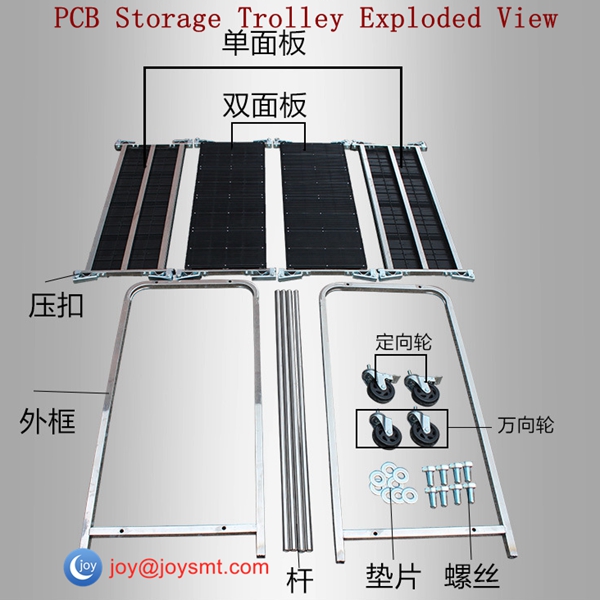

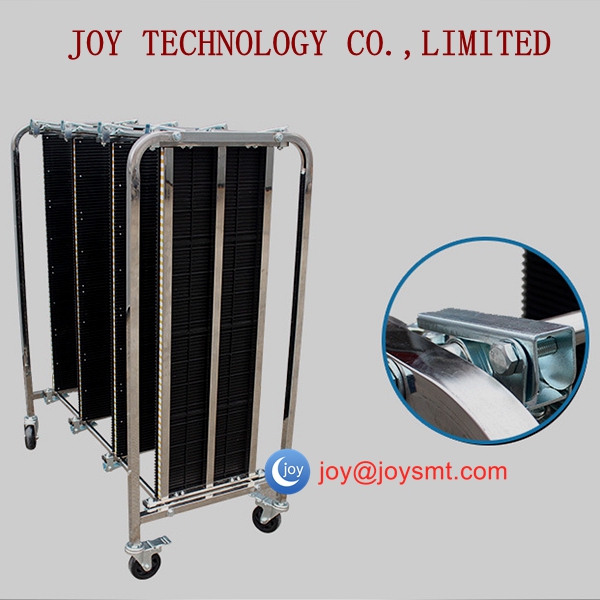

Anti-static SMT rack, electrostatic frame, anti-static PCB storage turnover, PCB turnover box
SMT rack is also called PCB collection box. It is widely used in automatic loading and unloading machines.
It is resistant to acids and alkalis. It is resistant to oil, high temperature, non-toxic and odorless.
It can be used to hold PCB boards. It is easy to clean and the circuit board is easy to turn. Stacking Neat,
easy to manage. Its reasonable design, excellent quality, applicable to the factory in the transport.
Distribution. Storage. Circulation processing and other links. SMT rack can be with a variety of logistics
Containers and workstations for all types of Warehouse, production site and other occasions
Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
