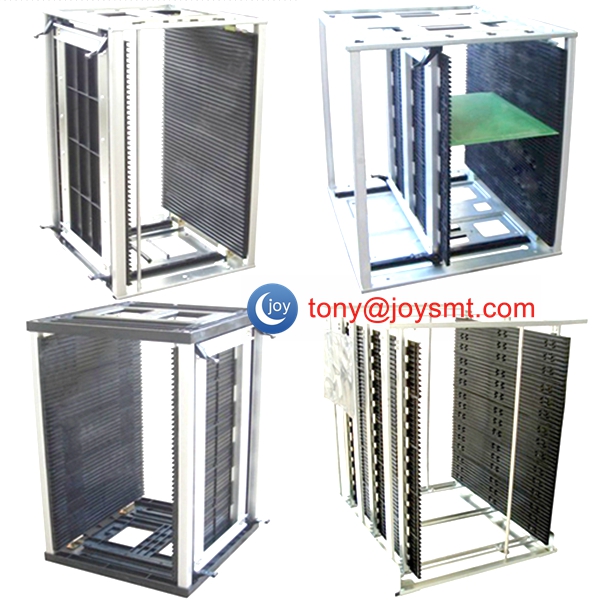

Technical Parameter and feature:
Frame: stainless steel tube, stainless steel adjusting screw
Slot plate: conductive PP injection plastic
Wheel: 4 "anti static wheel (2 brakes, 2 universal).
Number / case distance: 20/40-30
PCB plate length: 700mm
System resistance: 106 - 109Ω
The number of PCB boards can be stored: 60/120 block, 80/160 block
Outer size: L770*W755*H1680mm
Note: the number and height of different layers may be made as required
The overall material is 201#/202# stainless steel, the caster seat is made of carbon steel galvanized,
and the caster is made of antistatic rubber material.
The panel is made of anti-static plastic material. The rivets are galvanized with carbon steel.
The pressure fasteners and screws are all galvanized with carbon steel.
The stainless steel is welded by argon arc welding, the surface is polished with a wool wheel,
and the connection between stainless steel and plastic is riveted with rivets.
If you need any SMT ESD Equipment,pls contact us directly.
