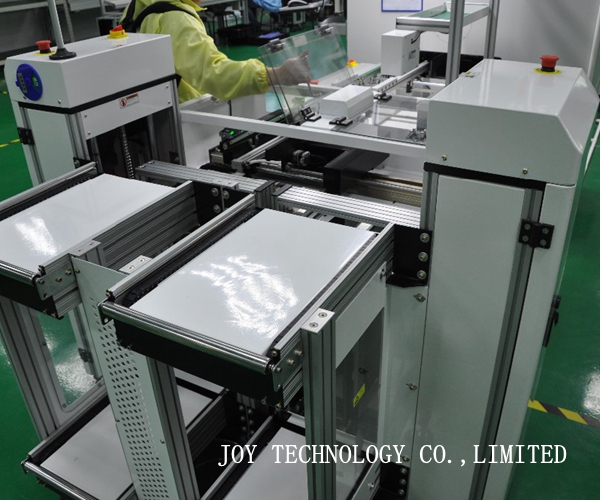

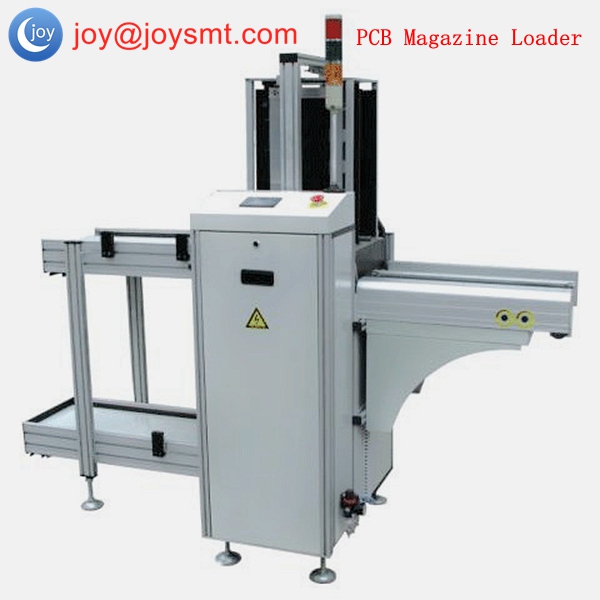

PCB Magazine Loader | PCB Magazine Unloader
Product features:
1.Special aluminum profile rails and dedicated 1000 bird type plastic chain
2.The lifting system adopts imported ball screw and carbon steel column,
with little noise, little vibration and accurate positioning
3.PLC Programmable controller control
4.With automatic unload board function
5.with automatic counting function, to facilitate production statistics.
6.The built-in search function and security fault detection system, abnormal alarm
7.Using the universal rack, good versatility
8.According to the thickness of the PCB can be set up and down the pace
technical parameter:
1. Overall dimensions: L1100 * W780 * H1200 ± 30mm
2. Pneumatic clamping structure.
3. Magazine specifications :L355 * W320 * 565mm
4. PCB maximum specifications for the L330 * W250
5. Direction: right to left / left to right
6. The lifting platform pitch selection is 10,20,30,40mm
7.Transmission height H = 920 ± 30mm
8. Power: 220V 50HZ
9.Gas source: 0.4-0.6MPa
10. Full load capacity: 50PCS
