Product description

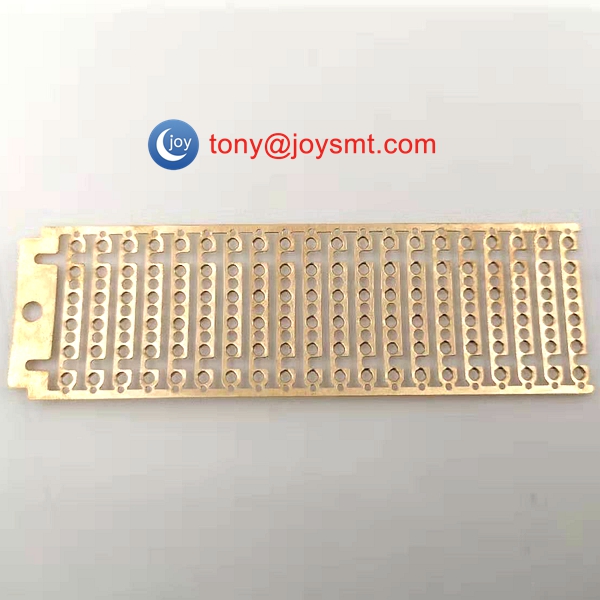

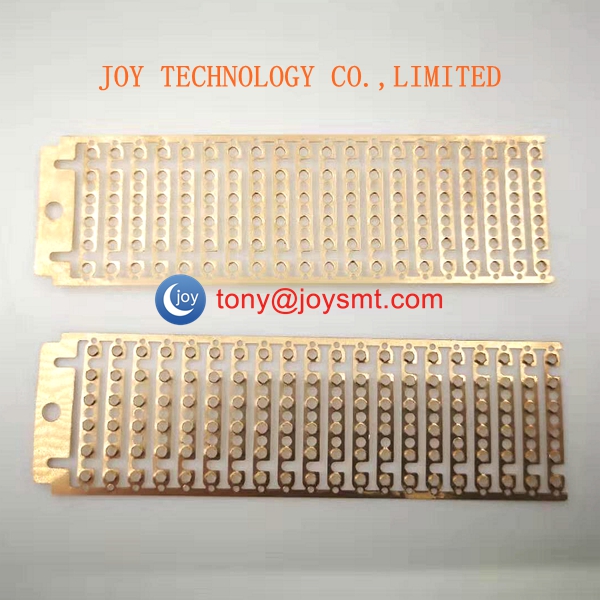

SMT Frame Splice Clip|SMT Copper Splice Stapler type Frame Clip
The Features as follows:
SMT Splice Frame Clip is made of high quality raw material pure copper stamping.
It is equipped with SMT single-side Splice tape and Splice Plier. The Splice Frame Clip is firm and reliable, and easy to cut down.
It does not affect the placement machine and the cutter. Regular work, the perforation of the SMT Splice Clip can clamp any SMT Splice Clip, and the connection of the SMT Splice Clip is highly reliable. This product is made of pure copper, thin, soft, and easy to cut, does not affect the placement machine cutter and Feida work. Suitable for any width of the tape, SMT Splice Clip + receiving pliers to use together, making the material more secure.
Product size: 86mm*25.5mm*0.1mm/pcs

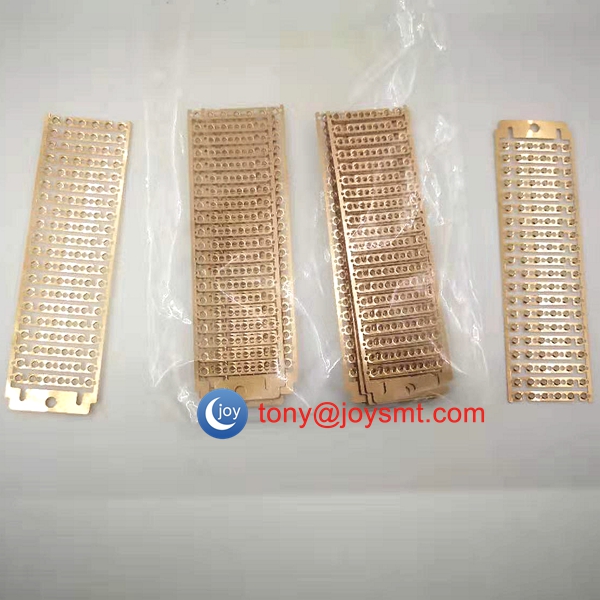

Product packaging: a small box of 25 pieces, a large box containing 8 boxes of small boxes, a total of 200 pieces, equivalent to 4000 single-row SMT Splice Clip, (single piece has 20 SMT Splice Clip), do not have to put SMT Splice Clip every time Go in, so it saves a lot of time. The material of the SMT Splice Clip is made of phosphor bronze and is sharp and sharp. It can easily penetrate various paper tapes and tapes.
SMT receiving SMT Splice Clip Packing: 25 pieces / small box Color: yellow 8 small box / big box 8 * 25 = 200pcs / big box
Product advantages:
1) Matching well with SMT Splice pliers during usage，
2) Easy to operate, wear resistant, no rust and no corrosion,
3) Refueling without stopping the machine to improve work efficiency;
4) Make full use of the remaining parts.
SMT Splice Tape and Frame Splice Clip Advantage:
The majority of electronic manufacturing companies use the SMT Splice Tapes extensively, with the following improvements:
1) It can greatly improve the production efficiency. If the equipment is stopped and the time taken is about 3 minutes, this is still fast. One machine runs for one minute and counts USD1, which wastes 3*6=USD18. If the SMT Splice tape is used, this time is saved,
and the two SMT Splice Tapes are only USD 0.1.
2) It is possible to avoid material waste: avoid the material being too short to be discarded on the machine, and all the remaining materials can be used.
3) It is to reduce the mechanical loss of SMT Placement Machine and Feeder,
reduce the frequent stop and open of the machine,
avoid frequent flapping and other actions of the feeder,
and prolong its service life.
4) It is possible to avoid some human accidents caused by the switch cover.
If you need any other SMT consumable Material，such as SMT Single splice clip,SMT splice Tape，Slice Plier.
Pls kindly contact us directly: joy@joysmt.com
