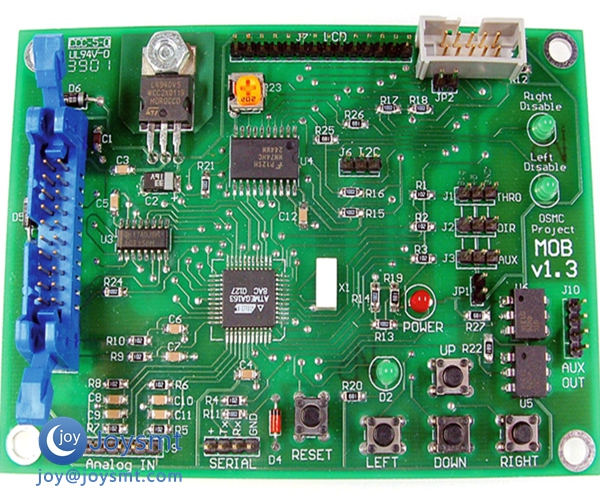

Printed Circuit Board (PCB) for Surface Mount Technology (SMT)
A printed circuit board, or PCB, is an integral part of electronics. A PCB is basically a substrate (normally made from glass epoxy) with conductive traces etched from copper sheets. These copper traces facilitate flow of electricity. Electronic components are soldered along this conductive pathway thus controlling the flow and quantity of electricity needed.

A Printed Circuit Board is also known as Printed Wiring Board (PWB). When all the electronic components are soldered on a PCB, it is called a Printed Circuit Assembly or PCA and sometimes PCBA (Printed Circuit Board Assembly).
Printed Circuit Board (PCB) for Surface Mounting (SMT)

Printed Circuit Board (PCB) for Surface Mount Technology (SMT) need to be chosen wisely taking into consideration factors such as CTE (Coefficient of Thermal Expansion), cost, dielectric properties and Tg.
When designing surface mounting board (PCB), the selection of substrate is basically determined by the type of SMD components to be used. In any Electronics manufacturing or PCB assembly, when leadless ceramic chip carriers (LCCC) are mounted on printed circuit boards made out of glass epoxy substrates, solder joints cracking is generally seen about 100 cycles. The cause of the excessive stress is the CTE differential between the ceramic package and the glass epoxy substrate.
There are three different approaches to solder joint cracking problems:

Using a substrate with a compatible CTE;
Using a compliant top layer substrate; and
Replacing leadless ceramic packages with leaded ones.
The most widely used substrate for SMT Printed Circuit Boards, is glass epoxy. It entails no CTE compatibility problems when used for plastic surface mount packages. However, This provides the solution for commercial applications only.
