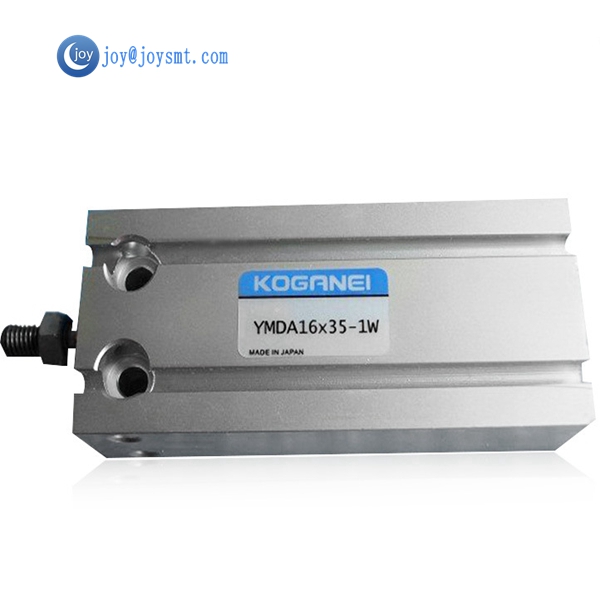

Yamaha Mounter Cylinder Type and Description:
A pneumatic actuator that converts the pressure energy of a compressed gas into a mechanical energy. Cylinders, cylinders in the engine, there is a piston driven by the pressure or expansion of the working fluid. Similar to the special, but non-cylindrical parts of the special type of engine, the cylinder has a reciprocating linear motion The reciprocating linear motion of the cylinder can be divided into single-acting, double-acting, diaphragm and impact cylinder 4 kinds.
① single-acting cylinder: only one end of the piston rod, from the piston side of the gas gathering to produce air pressure, air pressure to promote the piston thrust thrust, by spring or weight return.
② double acting cylinder: alternating from both sides of the piston gas supply, in one or two directions output force.
③ diaphragm cylinder: with the diaphragm instead of the piston, only in one direction output force, with a spring reset. It is good sealing performance, but the distance is short.
④ impact cylinder: This is a new type of components. It can compress the pressure of the gas can be converted to high-speed piston (10 ~ 20 m / s) kinetic energy, to work. The impact cylinder increases the middle cover with the spout and drain. The middle cover and the piston divide the cylinder into the gas storage chamber, the head chamber and the tail chamber. It is widely used in cutting, punching, crushing and molding and other operations. The impact cylinder increases the middle cover with the spout and drain. The middle cover and the piston divide the cylinder into the gas storage chamber, the head chamber and the tail chamber. It is widely used in cutting, punching, crushing and molding and other operations. For the reciprocating swing cylinder that swing cylinder, by the blade will be divided into two lumens, alternating to the two cavities, the output shaft for swing movement, swing angle is less than 280 degrees, in addition, there are rotary cylinder, gas-liquid damping cylinder and step Into the cylinder and so on.
Cylinder with 2 strokes and 4 strokes, common 2-stroke cylinder for motorcycles, chain saws, lawn mowers and other machines. For the reciprocating cylinder that swing cylinder, by the blade will be separated into two lumens, alternating to the two chambers of gas, the output shaft for swing motion, swing angle is less than 280 °, In addition, there are rotary cylinders, gas-liquid dampers and stepping cylinders.
Cylinder with 2 strokes and 4 strokes, common 2-stroke cylinder for motorcycles, chain saws, lawn mowers and other machines, the role of the cylinder is the main part of the turbine (nozzles, partitions, rotors, etc.) and the atmosphere .
