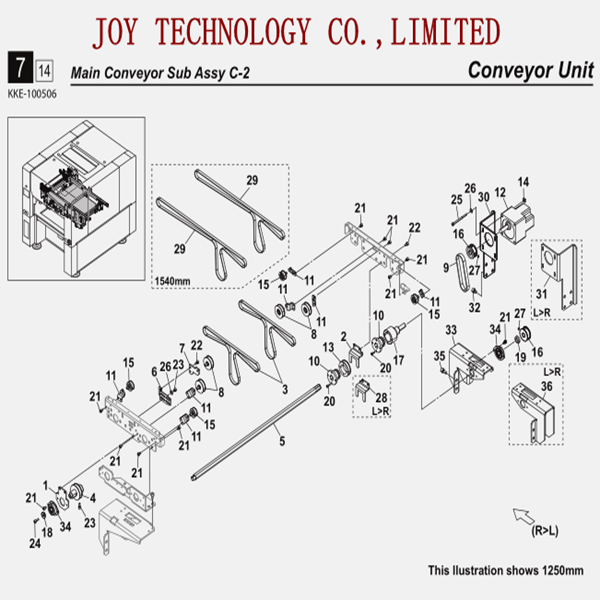

Yamaha YS24 Conveyor UNIT Explosive View and description as follows

No.     Part No.      Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M917B-00 BRKT. 1, SPLINE 1
2 KKE-M917D-00 BRACKET, COLLAR 1
3 KKE-M917H-00 BELT, CONVEYOR 2 1250mm L=662
4 KKE-M917J-00 PULLEY 1, MOTOR 1
5 KKE-M917K-00 SPLINE 1 1
6 KKE-M917N-00 BRACKET 1 1
7 KKE-M917P-00 BRACKET 2 1
8 KKE-M9119-A0 PULLEY CONV. ASSY. 4
9 KKE-M9128-00 BELT 222-3GT-9 1

10 KG2-M9108-11 COLLAR CONVEYOR 2

11 KG2-M9120-01 PLATE, PULLEY CON. 7
12 KGK-M9170-00 DC MOTOR ASSY. 1
13 KGT-M9135-00 PULLEY 1, SPLINE 1
14 KGT-M9193-00 NUT PLATE 4
15 KGY-M9140-A0 PULLEY, CONV. ASSY 4
16 KH2-M9105-11 PULLEY, MOTOR:P30-3GT 2
17 KHY-M9157-00 SHAFT, MOTOR 1
18 90990-28J076 WASHER, PLAIN 1
19 90990-41J006 COLLAR 1

20 91312-03010 BOLT HEX. SOCKET HEAD 8

21 91312-04006 BOLT HEX. SOCKET HEAD 29
22 91312-04008 BOLT HEX. SOCKET HEAD 4
23 91312-04010 BOLT HEX. SOCKET HEAD 3
24 91312-04012 BOLT HEX. SOCKET HEAD 1
25 91312-04055 BOLT HEX. SOCKET HEAD 4
26 92902-04200 WASHER, PLAIN 6
27 92A08-04303 SCREW, SET 4

28 KKE-M917D-10 BRACKET, COLLAR 1 L>R

29 KKE-M917H-50 BELT, CONVEYOR 2 1540mm L=932
30 KKE-M917E-00 BEKT, CONV. MOTOR 1
31 KKE-M917E-10 BEKT, CONV. MOTOR 1 L>R
32 91312-06008 BOLT HEX. SOCKET HEAD 4
33 KKE-M9173-00 BRKT., CONVEYOR 1
