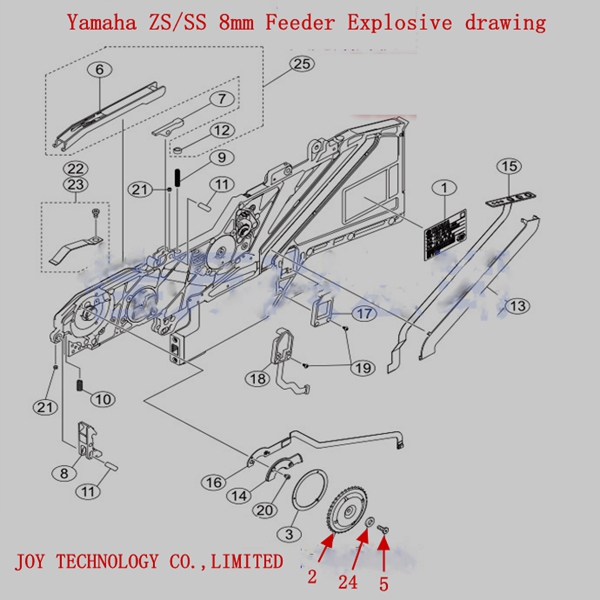

Product description YAMAHA KHJ-MC141-04 SS|ZS 8MM Feeder TAPE GUIDE



1 KHJ-MC10C-00 SEAL,MAIN LABEL
2 KHJ-MC131-00 SPROCKET ASSY.
2-1 KHJ-MC131-01 SPROCKET ASSY. 1 Resin
2-2 KHJ-MC131-02 SPROCKET ASSY. 1 Metal
3 KHJ-MC13A-00 SHIM,SPROCKET

5 90990-01J043 BOLT,EXTRA LOW HEAD
5-1 KHJ-MC13E-01 SCREW,SLIM HRAD

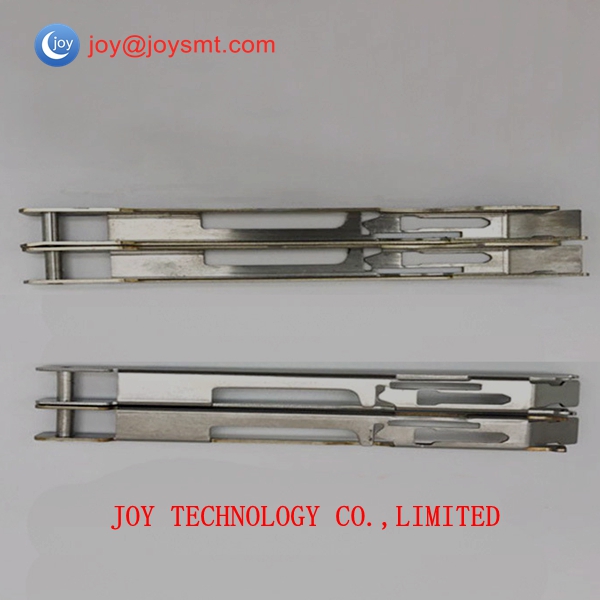

6 KHJ-MC141-02 TAPE GUIDE 1
6-1 KHJ-MC141-03 TAPE GUIDE  1 Resin
6-2 KHJ-MC141-04 TAPE GUIDE. 1 Metal
KLJ-MC141-00 TAPE GUIDE  1 STD
KLJ-MC14A-00 TAPE GUIDE,W8P1 1 1mm Pitch
KLJ-MC14B-00 TAPE GUIDE,W8P4 1 4mm Pitch


7 KHJ-MC144-00 LEVER,TAPE GUIDE R
8 KHJ-MC145-00 LEVER,TAPE GUIDE F
8-1 KHJ-MC145-01 LEVER,TAPE GUIDE F
9 KHJ-MC146-02 SPRING,TAPE GUIDE R
10 KHJ-MC147-02 SPRING,TAPE GUIDE F

11 KHJ-MC15A-00 SHAFT
12 KHJ-MC149-00 STOPPER,LEVER R
13 KHJ-MC167-00 COVER,MENBRANE
14 KHJ-MC1A4-00 COVER,ABS
15 KHJ-MC1AA-00 SWITCH,OPERATION
16 KHJ-M4664-00 ABS BOARD ASSY.

17 KHJ-MC1A5-00 DUMMY SPLICE SENS.
18 KHJ-MC1A5-10 SPLICE SENS.8MM 1 OPTION
19 KHJ-MC1AB-00 SCREW,PAN HEAD TAP.
20 90115-02J003 BOLT HEX.SOCKET HEAD

21 92A08-03303 SET SCREW M3X3
22 KHJ-MC1C1-00 PLATE, SPRING ASSY.
23 KHJ-MC1C1-10 PLATE, SPRING ASSY.
24 92902-03200 WASHER PLAIN

25 KHJ-MC141-S0 PARTS,TAPE GUIDE 1 STD
   KHJ-MC14A-S0 PARTS,TAPE GUIDE P1 1 1mm Pitch
   KHJ-MC14B-S0 PARTS,TAPE GUIDE P4 1 4mm Pitch
