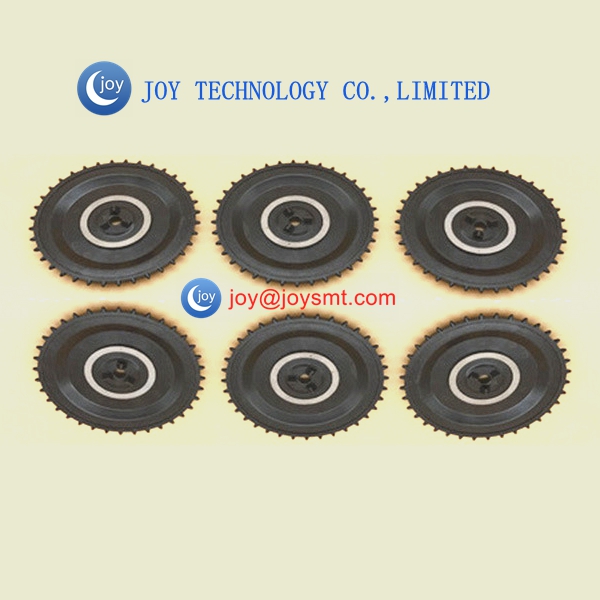

Product description YAMAHA KHJ-MC131-00 SS|ZS 8MM Feeder SPROCKET ASSY



1 KHJ-MC10C-00 SEAL,MAIN LABEL
2 KHJ-MC131-00 SPROCKET ASSY.
2-1 KHJ-MC131-01 SPROCKET ASSY. 1 Resin
2-2 KHJ-MC131-02 SPROCKET ASSY. 1 Metal
3 KHJ-MC13A-00 SHIM,SPROCKET

5 90990-01J043 BOLT,EXTRA LOW HEAD
5-1 KHJ-MC13E-01 SCREW,SLIM HRAD
6 KHJ-MC141-02 TAPE GUIDE 1
6-1 KHJ-MC141-03 TAPE GUIDE  1 Resin
6-2 KHJ-MC141-04 TAPE GUIDE. 1 Metal
KLJ-MC141-00 TAPE GUIDE  1 STD
KLJ-MC14A-00 TAPE GUIDE,W8P1 1 1mm Pitch
KLJ-MC14B-00 TAPE GUIDE,W8P4 1 4mm Pitch


7 KHJ-MC144-00 LEVER,TAPE GUIDE R
8 KHJ-MC145-00 LEVER,TAPE GUIDE F
8-1 KHJ-MC145-01 LEVER,TAPE GUIDE F
9 KHJ-MC146-02 SPRING,TAPE GUIDE R
10 KHJ-MC147-02 SPRING,TAPE GUIDE F

11 KHJ-MC15A-00 SHAFT
12 KHJ-MC149-00 STOPPER,LEVER R
13 KHJ-MC167-00 COVER,MENBRANE
14 KHJ-MC1A4-00 COVER,ABS
15 KHJ-MC1AA-00 SWITCH,OPERATION
16 KHJ-M4664-00 ABS BOARD ASSY.

17 KHJ-MC1A5-00 DUMMY SPLICE SENS.
18 KHJ-MC1A5-10 SPLICE SENS.8MM 1 OPTION
19 KHJ-MC1AB-00 SCREW,PAN HEAD TAP.
20 90115-02J003 BOLT HEX.SOCKET HEAD

21 92A08-03303 SET SCREW M3X3
22 KHJ-MC1C1-00 PLATE, SPRING ASSY.
23 KHJ-MC1C1-10 PLATE, SPRING ASSY.
24 92902-03200 WASHER PLAIN

25 KHJ-MC141-S0 PARTS,TAPE GUIDE 1 STD
   KHJ-MC14A-S0 PARTS,TAPE GUIDE P1 1 1mm Pitch

   KHJ-MC14B-S0 PARTS,TAPE GUIDE P4 1 4mm Pitch

KHJ-MC101-01 BODY,FEEDER
KHJ-MC101-02 BODY,FEEDER
KHJ-MC101-03 BODY,FEEDER
KHJ-MC110-00 MOTOR,FEED
KHJ-MC102-00 COVER,FEEDER SIDE 1
KHJ-MC10C-00 SEAL,MAIN LABEL
KHJ-MC10E-00 SCREW,FLAT HEXLOBE
KHJ-MC134-00 GEAR,IDLE F
KHJ-MC135-00 GEAR,IDLE F
KHJ-MC136-01 GEAR,IDLE F
KHJ-MC137-00 GEAR,IDLE F
KHJ-MC138-00 GEAR,DRIVEN
KHJ-MC139-00 SHAFT,IDLE GEAR
KHJ-MC13C-00 PLATE,PUSHER GEAR
KHJ-MC13D-00 SPRING,PUSHER PLATE
KHJ-MC13F-00 SCREW,STAD
KHJ-MC161-01 BOX,TOP TAPE
KHJ-MC161-02 BOX,TOP TAPE
KHJ-MC162-01 COVER,TOP TAPE BOX
KHJ-MC162-02 COVER,TOP TAPE BOX
KHJ-MC162-03 COVER,TOP TAPE BOX
KHJ-MC166-00 BLOCK,P/O TOOTH
KHJ-MC166-01 BLOCK,P/O TOOTH
KHJ-MC166-02 BLOCK,P/O TOOTH
KHJ-MC16F-00 SCREW,FLAT HEAD TAP.
KHJ-MC16J-00 SCREW,FLAT HEAD
KHJ-MC16U-00 TAIL COVER ASSY.
KHJ-MC106-00 PLATE,UNDER
90166-02JA03 SCREW,PAN HEAD
91317-03006 BOLT HEX.SOCKET HEAD
91317-03008 BOLT HEX.SOCKET HEAD
91312-03010 BOLT HEX.SOCKET HEAD
98707-03006 SCREW,FLAT HEAD
KHJ-MC16W-00 PLATE,P/O TOOTH
90112-2AJ006 BOLT HEX.SOCKET HEAD
KHJ-MC10C-00 SEAL,MAIN LABEL
KHJ-MC131-00 SPROCKET ASSY.
KHJ-MC13A-00 SHIM,SPROCKET
KHJ-MC13B-00 BUSH,SPROCKET




KHJ-MC13E-00 BOLT,EXTRA LOW HEAD
KHJ-MC141-02 TAPE GUIDE ASSY.
KHJ-MC144-00 LEVER,TAPE GUIDE R
KHJ-MC145-00 LEVER,TAPE GUIDE F
KHJ-MC146-02 SPRING,TAPE GUIDE R
KHJ-MC147-02 SPRING,TAPE GUIDE F
KHJ-MC15A-00 SHAFT
KHJ-MC165-00 MAGNET,TAIL
KHJ-MC167-00 COVER,MENBRANE
KHJ-MC1A4-00 COVER,ABS
KHJ-MC1AA-00 SWITCH,OPERATION
KHJ-M4664-00 ABS BOARD ASSY.
KHJ-MC1A5-00 DUMMY SPLICE SENS.
KHJ-MC1A5-10 SPLICE SENS.8MM 1 OPTION
KHJ-MC1AB-00 SCREW,PAN HEAD TAP.
90115-02J003 BOLT HEX.SOCKET HEAD
92A08-03303 SET SCREW M3X3
KHJ-MC10E-00 SCREW,FLAT HEXLOBE
KHJ-MC110-10 MOTOR,PEEL
KHJ-MC139-00 SHAFT,IDLE GEAR
KHJ-MC13F-00 SCREW,STAD
KHJ-MC151-00 GEAR,IDLE P1
KHJ-MC152-00 GEAR,IDLE P2
KHJ-MC153-00 GEAR,IDLE P3
KHJ-MC156-00 ROLLER,P/O 1
KHJ-MC156-01 ROLLER,P/O
KHJ-MC156-02 ROLLER,P/O
KHJ-MC159-00 COVER,IDLE GEAR
KHJ-MC154-00 GEAR,IDLE P4
KHJ-MC155-00 GEAR,IDLE P5
KHJ-MC158-00 COVER,IDLE GEAR 1
KHJ-MC16B-00 SHAFT,P/O LEVER 2
KHJ-MC16E-00 SPRING,P/O LEVER
KHJ-MC16H-00 SCREW,PAN HEAD TAP.
KHJ-MC16V-00 P/O LEVER ASSY.
KHJ-MC16V-01 P/O LEVER ASSY.
KHJ-MC16V-02 P/O LEVER ASSY.




KHJ-MC1A1-00 BOX,EL
KHJ-MC1A2-00 COVER,BOX EL
KHJ-MC1A3-00 COVER,CABLE
KHJ-MC1A3-01 COVER,CABLE
KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T
KHJ-MC1A9-00 CONNECTOR,BOARD
KHJ-MC1AC-00 INSULATION SHEET
KHJ-M4488-00 FEEDER BOARD ASSY.
90166-02JA08 SCREW PAN H.:M2.5X8
91317-03006 BOLT HEX.SOCKET HEAD
92A08-03303 SET SCREW M3X3
KHJ-MC103-02 BLOCK,FRONT
KHJ-MC104-00 RAIL,UNDER
KHJ-MC105-00 PIN,TAIL
KHJ-MC10F-00 SCREW,FLAT HEAD
KHJ-MC10M-00 BOLT,HEX. S/H
KHJ-MC139-00 SHAFT,IDLE GEAR
KHJ-MC16J-00 SCREW,FLAT HEAD
KHJ-MC181-00 HANDLE
KHJ-MC182-00 TENSION,WIRE
KHJ-MC183-00 SPACER,TENSION
KHJ-MC184-00 SPACER,TENSION
KHJ-MC185-00 PIN,HANDLE
KHJ-MC186-00 WIRE,UNCLAMP
KHJ-MC187-00 SPRING,TENSION
KHJ-MC189-00 PIN,CLAMP
KHJ-MC189-01 PIN,CLAMP
KHJ-MC18A-00 SPRING,CLAMP
KHJ-MC18B-00 COVER,WIRE
KHJ-MC18C-00 COVER,WIRE
KHJ-MC18F-00 CIRCLIP (E)




KHJ-MC18H-00 CLAMP LEVER ASSY.
91312-03008 BOLT HEX.SOCKET HEAD
92A08-03305 SCREW,SET
98702-03006 SCREW FLAT HEAD
99480-03010 PIN,PARALLEL
98702-03006 SCREW FLAT HEAD
99480-03010 PIN,PARALLEL
KHJ-MC10S-00 PIN,LOCATE
KHJ-MC10T-00 PIN,LOCATE
JKHJ-MC101-T1 BODY,FEEDER
KHJ-MC1A3-01 COVER,CABLE
KHJ-MC10D-00 PLUG,BODY
KHJ-MC10R-00 COVER,TAPE ROAD
Part No. Part Name
KHJ-MC201-00 BODY,FEEDER
KHJ-MC202-00 COVER,FEEDER SIDE
KHJ-MC20C-00 SEAL,MAIN LABEL
KHJ-MC10E-00 SCREW,FLAT HEXLOBE
KHJ-MC210-00 MOTOR, FEED
KHJ-MC134-00 GEAR,IDLE F1
KHJ-MC135-00 GEAR,IDLE F2
KHJ-MC136-01 GEAR,IDLE F3
KHJ-MC137-00 GEAR,IDLE F4
KHJ-MC238-00 GEAR,DRIVEN
KHJ-MC239-00 SHAFT,IDLE GEAR
KHJ-MC23B-00 BUSH,SPROCKET
KHJ-MC23C-00 PLATE,PUSHER GEAR
KHJ-MC13D-00 SPRING,PUSHER PLATE
KHJ-MC13F-00 SCREW,STAD
KHJ-MC13P-00 SPACER,F3
KHJ-MC23G-000 SHAFT,GEAR DRIVEN
KHJ-MC206-00 PLATE,UNDER
KHJ-MC261-00 BOX,TOP TAPE
KHJ-MC262-00 COVER,TOP TAPE BOX
KHJ-MC165-00 MAGNET,TAIL
KHJ-MC266-00 BLOCK,P/O TOOTH
KHJ-MC16J-00 SCREW,FLAT HEAD
KHJ-MC26L-00 PLATE,GUIDE
KHJ-MC26M-00 PLATE,GUIDE
KHJ-MC26N-00 PLUNGER



KHJ-MC46T-00 BOLT HEX.S/H LOW
KHJ-MC26U-00 TAIL COVER ASSY.
90166-02JA03 SCREW,PAN HEAD
98707-03006 SCREW,FLAT HEAD
99480-03010 PIN,PARALLEL
KHJ-MC20C-00 SEAL,MAIN LABEL
KHJ-MC132-00 SPROCKET
KHJ-MC23A-00 SHIM,SPROCKET
KHJ-MC23E-00 BOLT HEX.S/H LOW
KHJ-MC241-00 TAPE GUIDE ASSY.
KHJ-MC241-01 TAPE GUIDE ASSY
KHJ-MC241-02 TAPE GUIDE ASSY
KHJ-MC241-03 TAPE GUIDE ASSY
KHJ-MC244-00 LEVER,TAPE GUIDE R
KHJ-MC245-00 LEVER,TAPE GUIDE F
KHJ-MC245-01 LEVER,TAPE GUIDE F
KHJ-MC146-02 SPRING,TAPE GUIDE R
KHJ-MC247-00 SPRING,TAPE GUIDE F
KHJ-MC247-01 SPRING,TAPE GUIDE F
KHJ-MC167-00 COVER,MENBRANE
KHJ-MC16J-00 SCREW,FLAT HEAD
KHJ-MC26K-00 COVER,MENBRANE
KHJ-MC1A5-00 DUMMY SPLICE SENS.
KHJ-MC1AA-00 SWITCH,OPERATION
KHJ-MC24D-00 PLATE,GUIDE
KHJ-MC1AB-00 SCREW,PAN HEAD TAP.
98707-03006 SCREW,FLAT HEAD
92A08-03303 SET SCREW M3X3
99480-04022 PIN,PARALLEL
KHJ-MC24J-00 TAPE GUIDE ASSY
KHJ-MC24J-01 TAPE GUIDE ASSY
KHJ-MC24J-02 TAPE GUIDE ASSY.
KHJ-MC10E-00 CREW,FLAT HEXLOBE
KHJ-MC210-10 MOTOR, PEEL
KHJ-MC13F-00 SCREW,STAD

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
JOYSMT are long term and stable supplier of above stated SMT parts.
JOYSMT will Provide high quality and low price goods and perfect follow-up service.
