Medical devices and implants.
Inner-engine automobile sensors.
Measurement sensors for the oil and gas industry.

Consumer electronics.
Flexible circuitry may be preferable to rigid circuitry in situations where space or weight is limited.

Size and Weight Reduction Bene  ts to Flexible Circuitry ，

Generally,  fexible circuitry is the go-to solution for manufacturers who need:

Wiring solutions that  t where rigid boards cannot.

Thin, lightweight products that are nonetheless durable.

Miniaturized versions of existing technologies.

Three-dimensional packaging geometry.

A low number of device interconnects.

Shock and vibration resistance.

These benets point to  exible circuitry options as an ideal solution for mobile consumer electronics. Enterprising circuit board amateurs who take apart their smart phones or laptop computers will  nd a wealth of  exible circuitry inside any modern device on the market.
n the case of mobile devices, the use of rigid circuitry would result in a device too large, too heavy, and too fragile to conveniently carry around. This was the case with the Osborne I, the  rst fully powered mobile computer, which weighed in at an intimidating 24.5 pounds.

Size and weight reduction represent only one half of the  exible circuit story, however. They are also ideal for high temperature and high-density applications.

High Temperature and High-Density Applications

In many cases,  ex circuits are made of polyimide or a similar polymer. This material dissipates heat better than most rigid circuit board materials. For this reason,  exible circuits can be placed in inconvenient locations where heat would impact the performance of a rigid circuit board.

Flexible circuit boards can be designed to withstand extreme temperatures – between -200° C and 400° C – which explains why they are so desirable for borehole measurements in the oil and gas industry.

In fact, because of these conditions, and the need for small, unobtrusive devices in most industrial environments,  exible circuits represent the  rst choice for engineering design in most industrial sensor technologies.

High temperature resistance comes usually comes with good chemical resistance and excellent resistance to radiation and UV exposure as well. Combined with the ability to control impedances in high density circuit board designs,  exible circuit designs o er many bene ts to manufacturers.

Why Not Make All Circuit Boards Flexible?

Flexible circuit boards are certainly useful, but they are not going to replace rigid circuit boards for all applications. Cost e ciency is the main obstacle to implementing an exclusively  exible circuit board design in a consumer product. Rigid circuit boards are less expensive to manufacture and install in a typical automated high-volume fabricating facility.

Typically, the ideal solution for an innovative product is one that incorporates  exible circuitry when necessary, and employs solid, reliable rigid circuit boards where possible to keep manufacturing and assembly costs down.

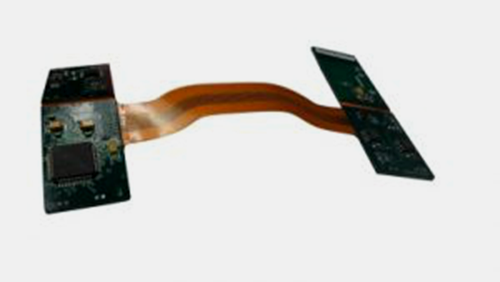

Some manufacturers even use hybrid rigid- ex printed circuit boards expressly for this purpose. This is common in laptop computers and medical devices, where rigid circuit boards can be connected to one other using ribbon-like  exible circuits. These boards can be compounded and designed to meet any number of engineering needs by focusing on the respective strengths of each circuit board base technology.
