How to select Samsung SMT nozzle model and precautions！

Time:2013-09-20    Source:www.joysmt.com

How to select Samsung SMT nozzle model and precautions！

1. Select the diameter of the nozzle hole can not be larger than the minimum size of the component
2. The diameter of the selected nozzle hole can not be much smaller than the minimum size of the component,

 the general ratio of 1: 1.2-1.7, the closest to the minimum size of the component is better.

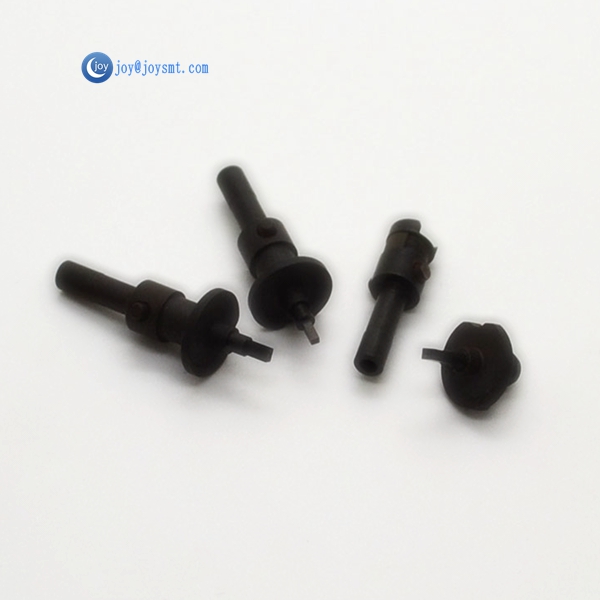

smt nozzle
Such as component length:

3.2mm, width 2.0mm element, according to the minimum size of the nozzle diameter is closest to the

 selection of the nozzle, so choose the nozzle CN140 is the best:

3.2mm
2.0mm

From the Samsung Mounter nozzle type can be seen on the nozzle of the corresponding size of the model,

 so it is not difficult to choose the corresponding components.CN020, CN030 is mainly used to play
 0201,0402 components, CN040: 0402,0603, CN065 with the mostextensive,

0402,0603,0805,1206, CN140: 1206,
Diode, transistor can be used, CN140 CN220 CN400 CN750 CN110
These nozzles are used to fight IC, the specific fight what IC, but also according to the size.

The following is the Samsung nozzle and electronic components of the reference table:

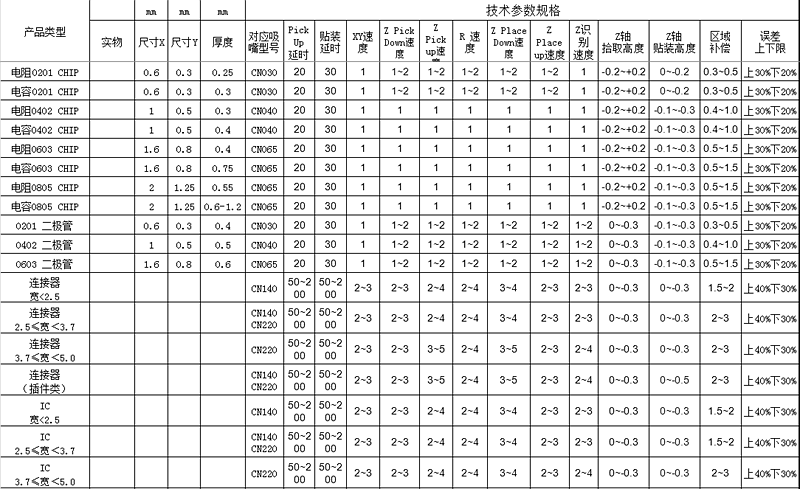

Samsung nozzle and electronic components of the reference table
