The working principle and advantage of ceramic smt nozzle

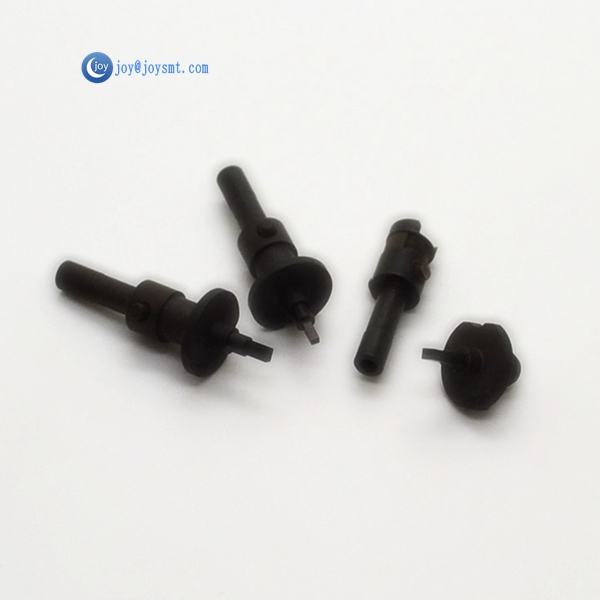

Ceramic nozzle is a ceramic material, nozzle-shaped, through the sealed tube pump suction air to suck the nozzle to achieve the effect of moving objects. Such as SMT ceramic nozzle is in the automated industrial production LED, SMT machinery is a very common accessories, its shape known for the round, the above is very smooth and smooth to suck particles. Products are mainly black, followed by white, other colors rarely.
Function and feature：
The bottom of the suction nozzle is a sealed tube of the vacuum pump, which pumps the air in the suction nozzle through the sealing tube, so that the nozzle is firmly adsorbed on the surface of the article, so that the goods can be transported and conveyed. Compared to other mechanical handling methods, ceramic nozzle can not damage the product or raw materials under the premise of the completion of the entire transport process, the nozzle is often made of ceramics. A suction plate is generally even 4,8,12,16, etc., the product is 2-12MM diameter, length 2-10MM, more than 20MM for the shape of the nozzle, less. Originally developed for the metal processing, due to conduction, not wear and tear, with static electricity and affect the production, which changed to ceramic nozzle.

Advantages of ceramic nozzle
1. Long life, due to material for the zirconia, its hardness after the diamond, wear-resistant, durable.
2. not white, lost material small.
3. Non-conductive, anti-static, ceramic materials with non-conductive and anti-static function.
Ceramic nozzle is widely used in various types of placement machine, LED splitter (3014.3528.3020.202.5050, etc.) and Sony, Samsung, KED nozzle, ASM, Panasonic nozzle, Hitachi. Samsung, Yamaha and others machine.
